» FLUKE-771 - Milliamp Process Clamp Meter

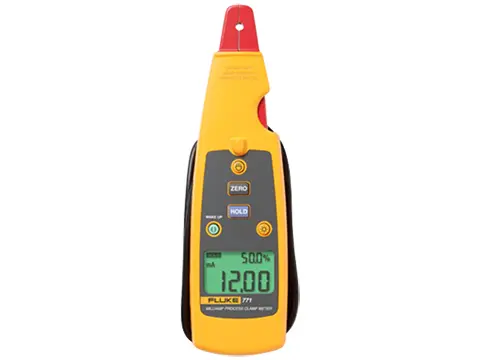

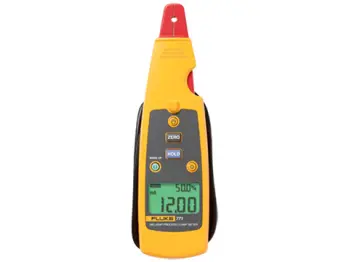

Fluke-Milliamp Process Clamp Meter
Click image to enlarge
(Fluke-771)
Mfg:
Fluke®
Price Each:
$893.99
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
Accessories
MILLIAMP PROCESS CLAMP METER The Fluke 771 milliamp process clamp meter measures mA signals for PLC and control system's analog input/output. The Fluke 771 can also measure 4 to 20 mA output signals from transmitters without breaking the loop. 0.2% accuracy and 0.01 mA resolution and sensitivity make the Fluke 771 one of the best options in it's class. The Fluke 771 features a hold function that captures and displays changing measurements. The meter has a dual backlit display that shows both mA measurement and percent of 4 to 20 mA span. The measurement spotlight illuminates hard to see wires in dark enclosures. The detachable clamp with extension cable facilitates taking measurements in tight locations. Fluke 771 milliamp process clamp meters have a 99.9 mA range that measures 10 to 50 mA signals in older control systems. Automatic battery saving features include an automatic power down after 15 minutes and the backlight and spotlight with automatically shut off after 2 minutes. The Fluke 771 ships complete with soft carrying case and user's manual.
Features
0.2% or reading + 5 counts accuracy at -20.99 mA to 20.99 Ma
1% or reading + 5 counts accuracy at -21.0 mA to -99.9 mA and 21.0 mA to 99.9 mA
0.177 in or 4.5mm max diameter of measurable conductor
-10° to 55°C operating temperature
IP40 rating
Up to $3,000 in FREE gifts
Technical Resources
Datasheet
Manual; Instruction Sheet
Manual Calibration
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Fluke TEST LEAD SET
TL75
$33.99
