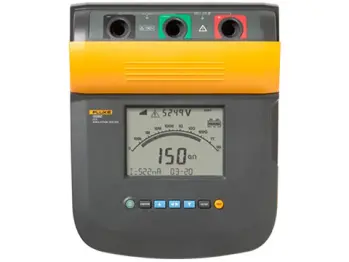

Fluke-Insulation Meter Kit

Click image to enlarge
(Fluke-1550C/KIT)
Mfg: Fluke®
Price Each: $5,199.99
Quantity:

5KV INSULATION TESTER KIT - The Fluke 1550C insulation resistance tester offers digital insulation testing up to 5kV, making it ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables. It's Fluke Connect compatible with ShareLive video so you can stay in contact with your entire team without leaving the field. With measurement storage and PC interface, the Fluke 1550C insulation resistance tester is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur. The FlukeView Forms Basic software (included) allows for further analysis on a PC. Other features of the 1550C include selectable test voltages in 50V steps, automatic calculation of Delectric Absorption (DAR) and Polarization Index (PI) and a guard system that eliminates the effect of surface leakage current on high-resistance measurement. A large digital/analog LCD display makes viewing results easy. The measurements, stored in up to 99 memory locations, feature a unique, user-defined, label per location for easy recall. A warning function alerts the user that the line voltage is present and gives the voltage reading up to 600 VAC or VDC, for increased user safety.
Features
  • Test voltages to up 10 kV; CAT III 1000 V, CAT IV 600 V safety rating; Warning function alert for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V; Up to 99 memory locations
  • Over 750 tests between battery charges; Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI)
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD; Capacitance and leakage current measurement
  • Ramp function for breakdown testing; Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes
  • Up to $3,000 in FREE gifts
