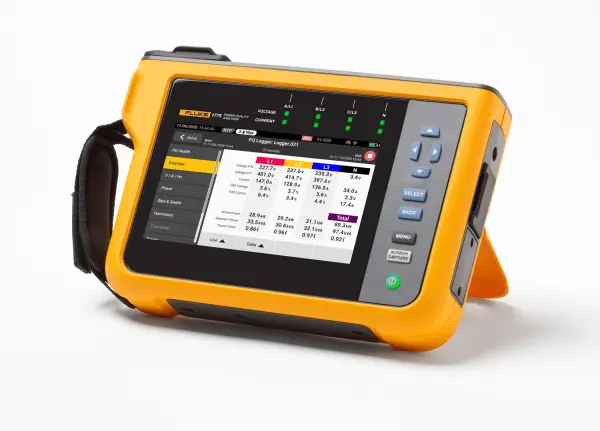

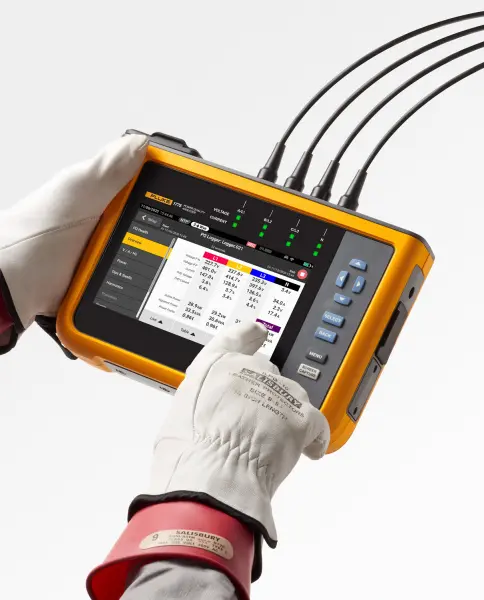

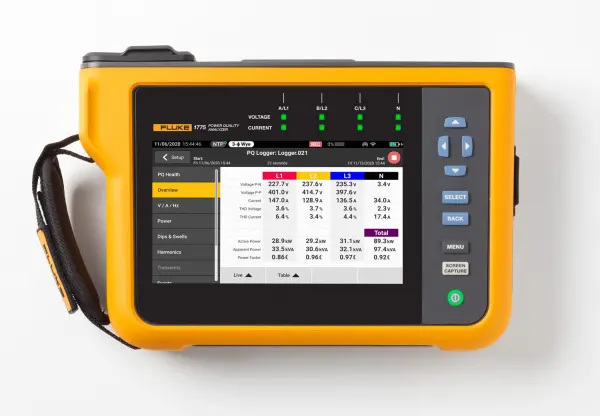

Fluke 1775 Power Quality Analyzer
Mfg: Fluke®
Price Each: $12,999.99
Quantity:
Fluke 1770 Series Three-Phase Power Quality Analyzers is a rugged, portable device for troubleshooting power quality. The compact size and power supply from the measurement line makes it a versatile tool for live measurements and long-term logging.
Eliminate the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series offers automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord
With the 1770 Series you’ll never miss a critical power quality event—from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system.

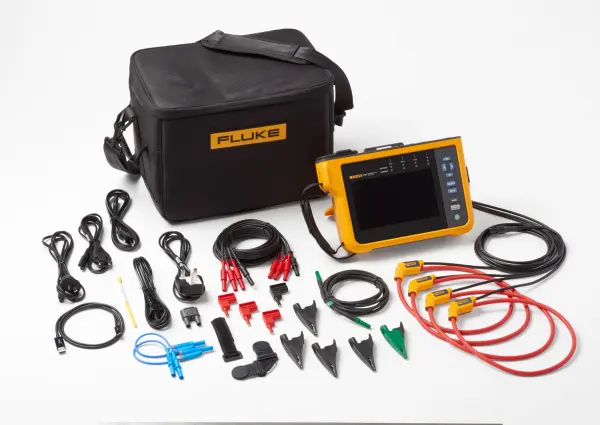

Packaging Includes
- FLUKE-1775 Power Quality Analyzer

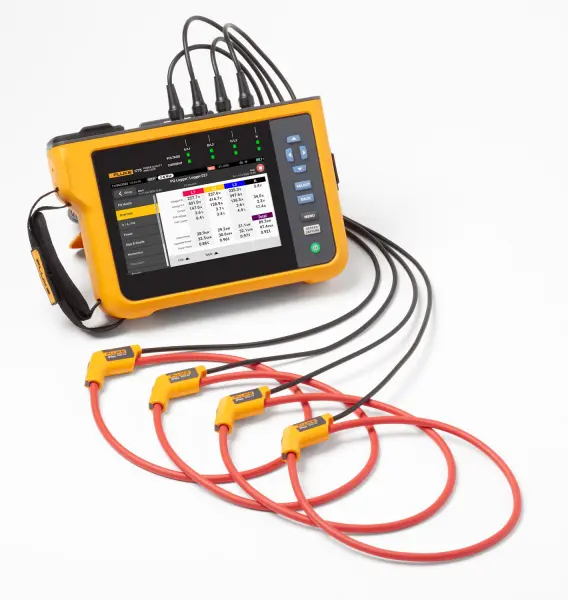

- I17XX-FLEX1500 24 iFLEX 1500A 24 IN (2.0M) current probes (set of four)
- FLUKE-17XX flat cable voltage test lead 3-phase+N
- AC285 black alligator clips (set of four)
- AC285 green alligator clip
- Black 1m USB-C cable
- Line cord
- FLK-17XX 0.18M test lead set
- Green test lead
- MP1-3R/1B Magnet Probe set
- FLUKE-174X-HANGER magnetic hanging kit
- FLUKE-177X-4204, WI-FI/BLE module
- Cable marker set (for voltage and current)
- FLUKE-174X-MA-C8 wall outlet adapter
- Black soft case
Features
- 3 phase unbalanced load measurement - calculation of the discrete single phase measurements
- Detailed loss analysis Unbalance analysis

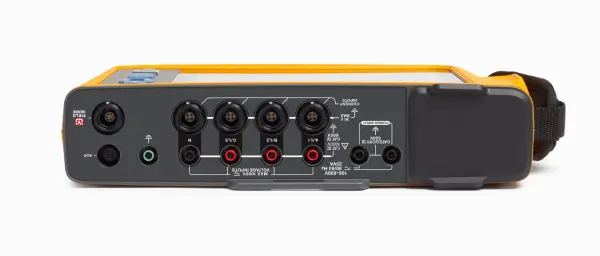

- Measure all three phases and neutral
- Troubleshoot real-time
- Measurements automatically recorded
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Quantity:
Fluke BP1770 Battery pack (50 °C ambient) is an MP 174565 xtd (P/N 7051P) battery manufactured by Saft S.A
Refer to the user manual for the Product to find information about how to install the battery
Quantity:
*****DISCONTINUED*****
The Fluke PQ400 Power Quality and Electrical Measurement Window enables the connection of three phase measurement equipment to energized panels, without the need to open the panel door, or wear supplemental personal protective equipment (PPE).
How It Works
The Fluke PQ400 Electrical Measurement Window is a permanently installed interface that provides technicians with near instant access to electrical panels for making critical power quality and energy measurements. The PQ400 installs using a standard step drill bit and electro-hydraulic hole punch (114.3 mm, 4.5-inch hole diameter), and allows users to make threephase voltage, current and ground connects covering most measurement configurations. Once installed users can simply unlock the window cover, lift the lid, and connect the voltage leads of the logger or analyzer. Then, connect the leads for the current sensors and start making critical measurements. Once complete, simply remove the voltage and current connections from the front panel interface and lock the window lid, leaving the internal connections in place for future use.
