Amprobe UAT-505
Underground Utility Locator Kit

Amprobe UAT-505 Underground Utility Locator Kit
The Amprobe UAT-505 Underground Utility Locator Kit is the rugged, economical solution for locating underground energized and de-energized wires, cables and pipes. The Transmitter utilizes the proven 33 kHz frequency, which is ideal for most locating applications. With the Receiver, trace the signal in Induction or Direct Test Leads Connection Modes. The Receiver features fast sound and meter response and easy depth measurements to 20 feet at the push of a button, as well as highly sensitive Power and Radio Modes which detect energized wires.

Key Features

• The UAT-505 can be used in different modes for optimal tracing in many
  situations.
• Locates underground energized and de-energized wires and cables
• Locates underground metal pipes
• Multiple tracing modes for locating and tracing energized and de-energized utilities in a variety of applications: Power Mode, Radio Mode, Induction Mode and Direct Test Leads Connection Mode
• Depth measurement up to 20 ft, detect and trace utilities buried up to 100 ft deep (Direct Test Leads Connection Mode only)
• Receiver features a high-contrast display with an automatic backlight and semiautomatic gain control for fast signal location and control
• 33 kHz transmitting frequency: best frequency for general locating

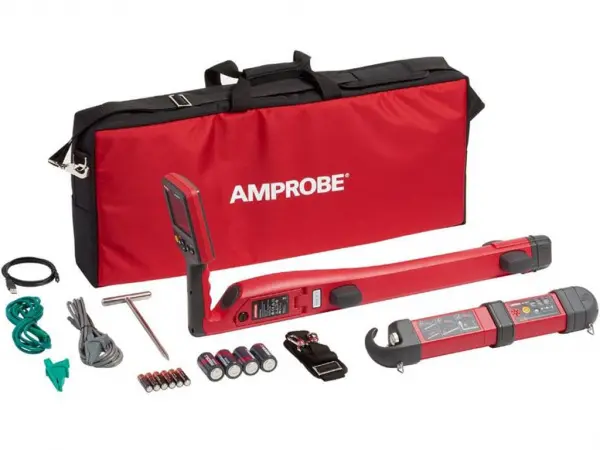

Includes

• UAT-600-R Receiver
• UAT-500-T Transmitter
• CC-UAT-500 Carrying Case
• TL-UAT-500 Test Leads Kit*
• 6x 1.5 V AA (IEC LR6) Batteries (Receiver)
• 4x 1.5 V D (IEC LR20) Batteries (Transmitter)
• User Manual
