» Amprobe AM-140-A Percission Digital Multimeter

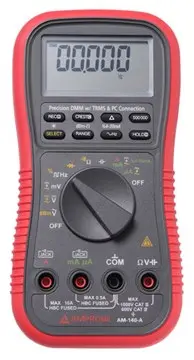

Amprobe-Percission Digital Multimeter
Click image to enlarge
(AM-140-A)
Mfg:
Amprobe®
Price Each:
$292.99
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
Accessories
PRECISION DMM W/ TRMS & PC CONNECTION - The Amprobe AM-140-A precision TRMS digital multimeter with PC connection is a feature-rich commercial grade meter at a great price. The AM-140-A measures voltage up to 1000 V AC/DC, resistance, AC/DC current, frequency, capacitance and duty cycle. The meter features an optical-isolated, PC interface capability, crest (peak hold), MAX, MIN MAX-MIN recording, auto and manual ranging, auto-power off, data hold, relative zero mode and more. The display is an easy-to-read large, backlight LCD with 4-4/5 digits 50,000 count with a selectable stable mode 5-4/5 digits 500,000 counts for DC voltage, and 6 digits 999,999 counts for HZ. In 4-4/5 digits fast mode the screen update rate is 5 per second nominal and in 4-4/5 digits stable mode the screen update rate is 1.25 per second nominal. The Amprobe AM-140-A has a CAT IV 600V, CAT III 1000V safety rating.
Features
True RMS Digital Clamp ON Meter
Optical Isolated PC Interface Capability
Min/Max and Max Min recording
Auto and Manual Ranging
Data Hold Function
DC loop Current 4-20mA
Up to $3,000 in FREE gifts
Technical Resources
Datasheet
Manual
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Amprobe USB-KIT3 Download Module For Clamp Meters
USB-KIT3
$90.99
Quantity:
DOWNLOAD MODULE FOR AMPROBE PRECISION MULTIMETERS - Download software with connection cable for Amprobe clamp meters
Amprobe -Carrying Case
VC221B
$27.99
Quantity:
Vimy carrying case,full size meters (Padded vinyl carrying case)
Amprobe FP160 Fuse
FP160
$6.99
Quantity:
REPLACEMENT FUSE PACK,PACK OF 2,10A/600V CERAMIC FUSE FOR 30XR
