Home » Hand Held Tools » Clamp on Meters » Amprobe ACD-50NAV 600A Navigator Clamp Meter

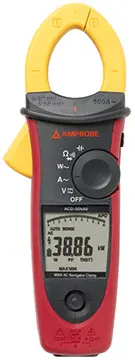

Amprobe-Navigator Clamp Meter

Click image to enlarge

(ACD-50NAV)

Mfg: Amprobe®

Price Each: $324.99

Quantity:

600A AC NAVIGATOR CLAMP - The Amprobe ACD-50NAV clamp meter serves as the first line of defense in any industrial setting. Typically used for facilities maintenance, the Amprobe ACD-50NAV clamp meter can verify system performance and quickly troubleshoot problems to minimize downtime. The ACD-50NAV is also a convenient, everyday tool for those working on critical machinery. Other typical applications for the Amprobe ACD-50NAV include motor testing, power quality, transformers and HVAC maintenance. The Amprobe ACD-50NAV clamp meter measures AC and DC voltage to 1000 V and AC current to 600 A. The unit is CAT IV rated. Many other robust features are included such as power and power factor, total harmonics distortion, individual harmonics and low pass filter to name a few. Designed for one-hand operation, Amprobe's leading-edge navigation system eliminates push buttons with an easy-to-use joystick which allows quick selection of measurement features on the display. Simply highlight the desired measurement feature using the joy stick and press to select. The ACD-50NAV is rugged and reliable and also features a super bright backlight display, built-in jaw flashlight and over-mold body to absorb shock -- all you need for commercial and industrial environments.

Features

True-rms technology improves accuracy in noisy environments
Measures AC/DC voltage to 1000V, AC current to 600A, plus resistance, frequency, capacitance, power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
Includes inrush current measurement and phase rotation indication for 3-phase motors
Non-contact voltage detection enhances safety
Low pass filter allows measurement of voltage and frequency of variable frequency drives
Continuity beeper quickly identifies shorts and opens
Min, max, and smart data hold
Up to $3,000 in FREE gifts

Technical Resources

Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.

Amprobe Case
CC-ACDC
$31.99

Quantity:

Case for ACDC 3000/A1000

Amprobe-Line Splitter
ELS2A
$29.99

Quantity:

DISCONTINUED - AC OUTLET LINE SPLITTER,X1 AND X10 RANGES - The Amprobe ELS2A AC current clamp accessory is for sue with all models of clamp meters. It enables the user of a clamp meter to measure the current on a 2-wire or 3-wire power cord to 15 A without having to cut off the plug and separate the conductors, or opening electrical boxes on 120 V lines. The Amprobe ELS2A also includes a 10X current multiplier loop for increased sensitivity and accuracy of low-current measurements.
