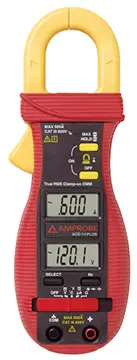

» Amprobe ACD-14 PLUS Dual Display Clamp On Multi Meter
Amprobe-Dual Display Clamp On Multi Meter
Click image to enlarge
(ACD-14 PLUS)
Mfg:
Amprobe®
Price Each:
$198.99
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
Accessories
DUAL DISPLAY DIGITAL CLAMP-ON MULTIMETER - The Amprobe ACD-14 PLUS clamp multimeter with dual display is the professional's choice for both HVAC and electrical applications due to its complete set of measuring features. This Amprobe multimeter's thin jaws allow access to tight measurement areas while still accommodating conductors up to 28 mm. Dual displays allow for viewing amperage and voltage simultaneously. The Amprobe ACD-14 PLUS clamp multimeter measures AC & DC voltage to 600 V, AC current to 600 A, capacitance to 3000 µF, Ohms to 40.00 MΩ, frequency to 600V, and temperature from -4°F to 999°F with a Type-K thermocouple probe. The Amprobe ACD-14 PLUS also measures DC & AC micro-amperage in the 400.0 µA and 2000 µA ranges. Other features include continuity buzzer, diode test, Hold and Maximum reading functions, auto power-off, and low battery indication.
Features
Dual Display Digital Clamp ON Meter
Measures AC Current to 600A and AC/DC Voltage to 600V
Measures frequency, capacitance to 3000 µF, and resistance to 40M?
Measures temperature with K-type thermocouple probe
Includes micro amps measurement for testing flame sensors
Up to $3,000 in FREE gifts
Technical Resources
Datasheet
Manual
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Amprobe Universal Case
SV-U
$22.99
Quantity:
Case, Universal - Soft pouch zippered carrying case
Amprobe-Line Splitter
ELS2A
$29.99
Quantity:
DISCONTINUED -
AC OUTLET LINE SPLITTER,X1 AND X10 RANGES - The Amprobe ELS2A AC current clamp accessory is for sue with all models of clamp meters. It enables the user of a clamp meter to measure the current on a 2-wire or 3-wire power cord to 15 A without having to cut off the plug and separate the conductors, or opening electrical boxes on 120 V lines. The Amprobe ELS2A also includes a 10X current multiplier loop for increased sensitivity and accuracy of low-current measurements.
