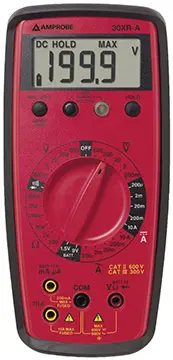

Amprobe-Digital Multimeter

Click image to enlarge
(30XR-A)
Mfg: Amprobe®
Price Each: $112.99
Quantity:

PROF DMM W NON-CONTACT VOLT TESTER - The Amprobe 30XR-A is a manual ranging digital multimeter with a non-contact voltage detector and the ability to test batteries under load. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 30XR-A is designed for field service technicians. The meter includes a Cat II 600 V, Cat III 300 V safety rating. The 30XR-A includes the features and functions needed for a wide range of applications. The meter measures AC and DC voltage to 600 V, AC and DC current to 10 A, and resistance to 20 MΩ. Additionally, 30XR-A multimeters have a continuity beeper, diode test, and overload protection. All measurements have wide testing ranges and high accuracy. The battery test function allows 1.5 and 9 V batteries to be tested under load. Testing results are displayed on the 3-1/2 digit LCD. The Amprobe 30XR-A digital multimeter also includes Min/Max and Data Hold functions as well as a separate door for battery and fuse access.
Features
  • Non-contact voltage detector
  • Separate door for easy battery and fuse access
  • Manual ranging; display: 3-1/2 digit LCD, 1999 counts
  • Display update rate: 2.5/sec, nominal
  • Min/max and data Hold
  • Magne-Grip Holster with magnetic hanging strap
  • Continuity beeper
  • Up to $3,000 in FREE gifts
Technical Resources
Add a quantity below and we will automatically add it to your quote or buy cart when you click on the Add to Cart or Quote button above
Quantity:
AC/DC CLAMP-1000A - The Amprobe CT235A amp clamp accessory current transformer measures AC or DC current up to 1000 A. It converts high current to a low level millivolt signal for input directly into a test instrument. The Amprobe CT235A can be used with standard DMMs, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments.
Quantity:
AC/DC CLAMP-20A - The Amprobe CT238A current transformer probe measures AC or DC current. It converts high current to a low level millivolt signal for input directly into a test instrument. It can be used with standard digital multimeters, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments.

Includes:  Attached Leads and User Manual

Quantity:
DELUXE TEST LEAD KIT - The Amprobe DL248D deluxe test lead kit contains: Silicone lead wires, 48" long, red and black Standard probe tips, red and black Alligator clips, red and black Spade lugs, red and black Red tip length extender Carrying case with pockets and Velcro closureEN61010-2-031 safety approved

Quantity:
TEST LEAD SET WITH ALLIGATOR CLIP,CAT III 1000VOLT - Test leads with threaded alligator clips CAT IV / 600 V, CAT III / 1000 V


Amprobe -Carrying Case
VC221B
$22.99
Quantity:
Vimy carrying case,full size meters (Padded vinyl carrying case)
Amprobe HV231-10A HV Probe
HV231-10A
$129.95
Quantity:
HV PROBE 10 MEGOHM - The Amprobe HV231-10A high voltage probe can be used for AC or DC measurement up to 40 kV. It can be used with standard multimeters with 10 MΩ input impedance.
