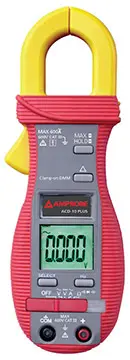

Amprobe-Digital Clamp On Meter

Click image to enlarge

(ACD-10 PLUS)

Mfg: Amprobe®

Price Each: $104.99

Quantity:

DIGITAL CLAMP ON METER, CAP, FREQ - The Amprobe ACD-10 PLUS is a 600 A clamp meter. Featuring jaws thinner than standard clamp meters, this Amprobe clamp meter is able to access tight measurement areas while still accommodating conductors up to 25 mm. The ACD-10 PLUS provides a full range of measurements and is a very versatile clamp-style multimeter. The Amprobe ACD-10 PLUS clamp meter accurately measures AC & DC voltage to 600V, AC current to 600A, resistance to 40MΩ, capacitance to 3000 µF, and frequency. Frequency is measured by either jaws or test leads. Measurement values are easily viewed on the ACD-10 PLUS's 3-3/4 digit LCD display. Other features of the Amprobe ACD-10 PLUS include auto ranging, a continuity buzzer, relative zero mode, hold and maximum reading functions.

Features

Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
Thin jaws, only 10mm (0.4") thick make it easier to maneuver between tightly packed conductors
Measures frequency, resistance, and capacitance
Features continuity beeper to quickly find opens and shorts
Accommodates conductors up to 1.0" (25mm) in diameter
Up to $3,000 in FREE gifts

Technical Resources

Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.

Amprobe DL248D Deluxe Test Lead Kit
DL248D
$90.99

Quantity:

DELUXE TEST LEAD KIT - The Amprobe DL248D deluxe test lead kit contains: Silicone lead wires, 48" long, red and black Standard probe tips, red and black Alligator clips, red and black Spade lugs, red and black Red tip length extender Carrying case with pockets and Velcro closureEN61010-2-031 safety approved

Amprobe-Line Splitter
ELS2A
$29.99

Quantity:

DISCONTINUED - AC OUTLET LINE SPLITTER,X1 AND X10 RANGES - The Amprobe ELS2A AC current clamp accessory is for sue with all models of clamp meters. It enables the user of a clamp meter to measure the current on a 2-wire or 3-wire power cord to 15 A without having to cut off the plug and separate the conductors, or opening electrical boxes on 120 V lines. The Amprobe ELS2A also includes a 10X current multiplier loop for increased sensitivity and accuracy of low-current measurements.
