» Amprobe ACD-41PQ 1000A Clamp On Power Quality Meter

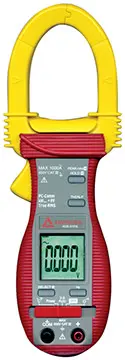

Amprobe-Clamp On Power Quality Meter
Click image to enlarge
(ACD-41PQ)
Mfg:
Amprobe®
Price Each:
$599.99
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
Accessories
1000A CLAMP-ON POWER QUALITY METER W/THD-F - The Amprobe ACD-41PQ clamp-on power quality meter provides a simple and effective way to verify if the electrical system is affected by harmonics. The ACD-41PQ is a True RMS clamp-on meter with enhanced troubleshooting capabilities as well as power analysis functions. For enhanced meter functionality an optional PC interface kit is available for data analysis. Amprobe ACD-41PQ clamp-on power quality meters feature: an audible, continuity alarm; auto power-off; automatic polarity detection; low battery indication; peak hold; data hold and voltage overload protection for all functions up to 600 V AC/DC. The Amprobe ACD-41PQ clamp-on power quality meter accurately measures AC/DC voltage, AC current, frequency, and temperature. Additionally, the meter measures total harmonic distortion to th 51st harmonic with accuracy from ±(1.5% rdg + 6d) to ±(4.5% rdg + 6d) depending on range. The Amprobe ACD-41PQ also measures Active (W), Reactive (VAR) and Apparent (VA) Power with dual-display Power Factor readout.
Features
True RMS Digital Clamp ON Meter
Total harmonics distortion (THD), AC/DC voltage up to 600V, AC current up to 1000A, resistance, frequency, temperature
Optional PC interface capability (RS-232 KIT2)
Audible continuity
Large, easy to read LCD display with backlight
Automatic polarity
Voltage overload protection for all functions up to 600V AC/DC
Up to $3,000 in FREE gifts
Technical Resources
Datasheet
Manual
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Amprobe-Line Splitter
ELS2A
$29.99
Quantity:
DISCONTINUED -
AC OUTLET LINE SPLITTER,X1 AND X10 RANGES - The Amprobe ELS2A AC current clamp accessory is for sue with all models of clamp meters. It enables the user of a clamp meter to measure the current on a 2-wire or 3-wire power cord to 15 A without having to cut off the plug and separate the conductors, or opening electrical boxes on 120 V lines. The Amprobe ELS2A also includes a 10X current multiplier loop for increased sensitivity and accuracy of low-current measurements.
Amprobe Case
CC-ACDC
$31.99
Quantity:
Case for ACDC 3000/A1000
