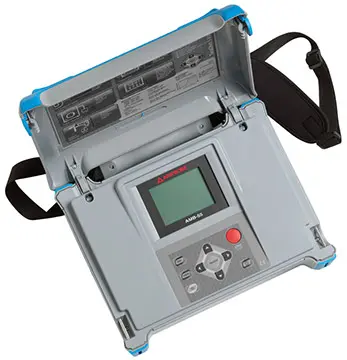

Amprobe-Advanced Insulation Resistance Tester

Click image to enlarge
(AMB-55)
Mfg: Amprobe®
Price Each: $3,065.99
Quantity:

5000V ADVANCED INSULATION RESISTANCE TESTER - Amprobe AMB-55 / AMB-110 Megohmmeters / Insulation Testers have all necessary features for advanced professional insulation diagnostics. Automated calculation of PI, DD and DAR, combined with a possibility to perform a step voltage test make these instruments suitable for the most demanding customers and applications. Large LCD display allows real time R(t) graphs to be displayed. Windows compatible PC Software and either RS232 or USB communications ports serve for connecting the instrument to the PC and management of the recorded test data. Selectable testing voltages: One testing instrument for low and high voltage systems. AMB-55 from 250V to 5000V with 25V incrementsAMB-110 from 500V to 10,000V with 25V increments
Features
  • 250V and 5000V with 25V increments
  • Capacitance measurement
  • PI (Polarization Index)
  • DD (Dielectric Discharge)
  • DAR(Dielectric Absorption Ratio) Test
  • Diagnostic Tools
  • Step Voltage Test
  • Up to $3,000 in FREE gifts
Technical Resources
Add a quantity below and we will automatically add it to your quote or buy cart when you click on the Add to Cart or Quote button above
Quantity:
TEST LEAD SET FOR INSULATION RESISTANCE TESTERS
