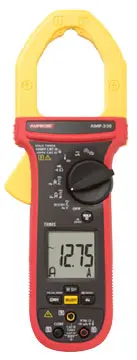

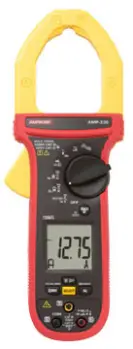

Amprobe-ACDC TRMS Clamp Multimeter

Click image to enlarge

(AMP-330)

Mfg: Amprobe®

Price Each: $274.99

Quantity:

1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING - The Amprobe AMP-330 TRMS Clamp Meter is a versatile clamp-on amp meter for electrical motor maintenance and HVAC testing in high voltage industrial environments, the AMP-330 Clamp Meter is the best clamp meter for the job. It is the best clamp meter in the AMP-300 Series line including all the features of the AMP-320 plus a work light, peak hold, CAT IV 600 V, CAT III 1000 V safety rating and large 2.0 inch (51 mm) jaw. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, and continuity.

Features

True RMS
Measures AC/DC current to 1000A and AC/DC voltage to 1000V
Measures temperature from -40 to 752°F (-40 to 400°C)
Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
Measures capacitance, test diodes and features a continuity beeper
Tests 3-phase sequence & motor rotation to ensure proper connection of a motor to a 3-phase system
CAT IV 600V, CAT III 1000V Safety rated
Up to $3,000 in FREE gifts

Technical Resources

Add a quantity below and we will automatically add it to your quote or buy cart when you click on the Add to Cart or Quote button above

Amprobe TL35B Test Leads
TL35B
$23.99

Quantity:

TEST LEAD WITH ALLIGATOR CLIPS - CE (Standard leads: 40" PVC insulated lead with standard tips plus threaded large alligator clips, CE approved alligator clips, 0.6" jaw, shrouded 90⁰ banana plugs, one red and one black leads and clips.)

Amprobe TL-300 Test Leads
TL-300
$45.99

Quantity:

TEST LEADS SET W/ALLIGATOR CLIPS (RED,BLACK,YELLOW),CASE & THERMOCUPLE

Amprobe-Line Splitter
ELS2A
$29.99

Quantity:

AC OUTLET LINE SPLITTER,X1 AND X10 RANGES - The Amprobe ELS2A AC current clamp accessory is for sue with all models of clamp meters. It enables the user of a clamp meter to measure the current on a 2-wire or 3-wire power cord to 15 A without having to cut off the plug and separate the conductors, or opening electrical boxes on 120 V lines. The Amprobe ELS2A also includes a 10X current multiplier loop for increased sensitivity and accuracy of low-current measurements.
