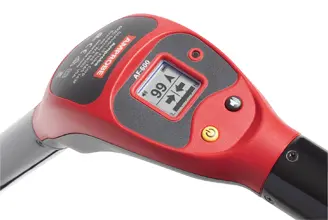

Amprobe A Frame Cable Ground Fault Locator

The AF-600 A-Frame cable ground fault finder is specifically designed for the Amprobe UAT-600 Underground Utilities Locator Series. In combination with the UAT-600 Transmitter, it will pinpoint the place where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground. It can also detect other conductors to ground faults such as pipeline coating defects.

Features

Optional accessory for Amprobe UAT-600 Underground Utilities Locator Series
Works in conjunction with the UAT-600-T Transmitter
Locate cable and wires ground faults, sheath faults or pipeline coating defects (direct contact of the utility with the ground is required to pinpoint a fault)
Used to find the point where metal is touching the ground (shield is rusted/rubber buffer is broken) and power is leaking, creating noise on a cable
Find the point of leakage around a cable (ground faults are common problems with electric cables) – saves money by pinpointing leakage point
Advanced technology and digital signal processing makes pinpointing process fast, accurate and unambiguous:
Compass guidance with numeric fault field strength indicates direction to the place of the fault
Distance sensitive left/right guidance guides the user to precisely follow the path of the buried utility
Automatic gain control quickly detects tracing signal and precisely adjuAutomatic gain control quickly detects tracing signal and precisely adjust A-Frame sensitivityst A-Frame sensitivity
