AEMC PowerPad® Model 8436

Click image to enlarge
(Part #2136.43)
Mfg: AEMC®
Price Each: $4,995.00
Quantity:

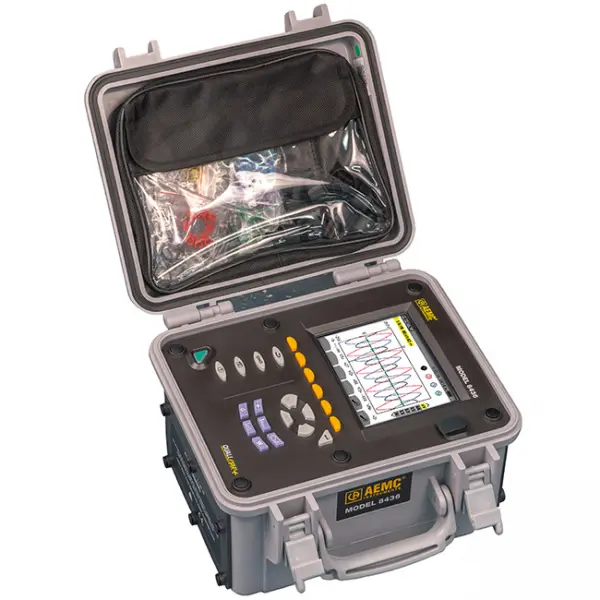

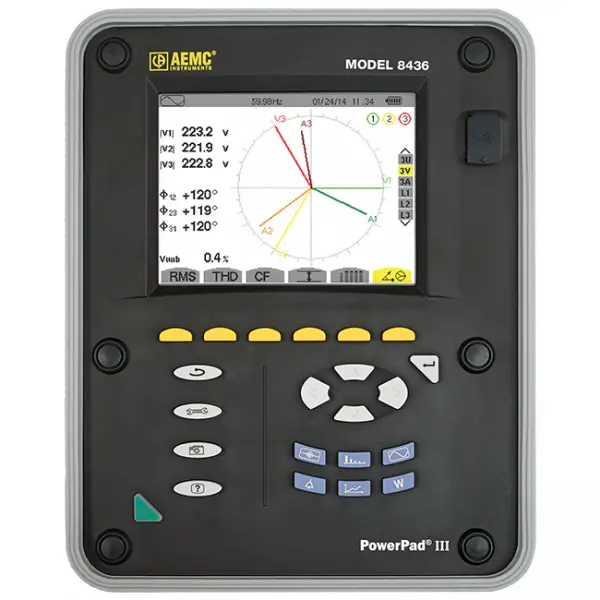

The PowerPad® III Model 8436 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV. It is rated IP67 when used with the flexible sensor Ampflex® 196A.

The Model 8436 can record 2GB of trend data on a memory card. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and >16,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks, or even months. Inrush current can also be captured and stored.

Features
  • Rugged, waterproof IP67 Qualistar
  • Indoor and outdoor use, even when it is raining

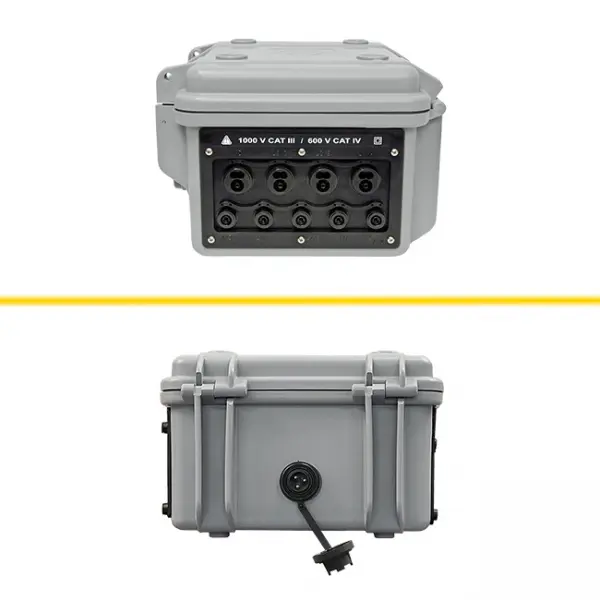

  • 5 voltage inputs, 4 current inputs
  • Continuous recording of all the parameters simultaneously
  • Monitoring with alarms
  • Inrush over a period of up to 10 minutes
  • Integration of all the DC components
  • Calculation of the distortion voltages and currents
  • Measurement of P, Q, S and D power values, total and per phase
  • Calculation of Pst & Plt flicker values
  • Large choice of units available: kW, Joule, nuclear toe, non-nuclear toe, BTU, etc.
  • Up to 40 alarms can be set simultaneously
  • Recording mode: recording starts immediately
  • Specially designed to save time
