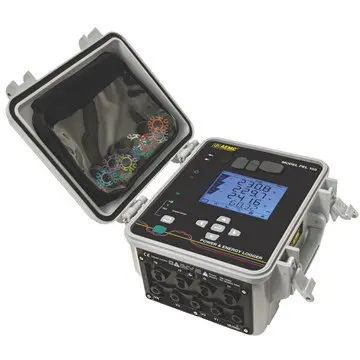

AEMC Power & Energy Logger Model PEL 105
Click image to enlarge
(Part #2137.57)
Mfg:
AEMC®
Additional Model Number:
PEL 105
Price Each:
$4,090.00
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
Accessories
AEMC’s Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents without the need to wear PPE gear
Features
Built into waterproof case with IP67 rating
Simple to use, single, dual-split and three phase power and energy logger
1000V CAT IV
Measurement of RMS voltages and currents at 128 times per cycle and stored every second
Power Measurements: VA, W and var
Energy Measurements: VAh, Wh (source load) and varh (quadrant indication)
Updated features in DataView software for configuring real-time communication with a PC and report generation with pre-defined or user defined templates
USB, LAN, Ethernet and Bluetooth (Class 1 wireless communication, up to 300 ft. away)
WiFi communication
Minimal programming required
Can be configured from front panel, through Dataview control panel or free app
Satisfies the recommendations of NEC Code 220.87
Provides all the necessary functions for power and energy data logging for 50Hz, 60Hz, 400Hz and DC distribution systems
Automatic recognition of the connected current sensors/probes
Can be powered directly from AC Phase measurement
Technical Resources
Datasheet
Manual
Brochure
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
AEMC Pole Mounting Kit
Part #: 2137.82
$245.00
Quantity:
Pole Mounting Kit - Accessory for the Models 8435 & PEL 105
AEMC Adapter – BNC Adapter
Part #2140.40
$132.50
Quantity:
Adapter - BNC Adapter for AC/DC Current Probe Model SL261 & Meters 8220, 8333, 8335 & 8336
AEMC AC/DC Current Probe Model SL261
Part #: 1201.51
$494.00
Quantity:
The Model SL261 is a portable 100A peak current probe with insulated BNC output cable that can accurately measure AC or DC current waveforms. The unit has proportional mV output for direct readings on oscilloscopes. Three position slide switch on handle selects ranges and ON/OFF.
AEMC Bag - Extra Large Tool Bag (Part# 2133.73)
Part# 2133.73
$53.00
Quantity:
Extra Large Classic Tool Bag
AEMC AC/DC Current Probe Model MR193-BK
Part #: 2140.28
$489.00
Quantity:
AC Current Probe Model MR193-BK for use with PowerPad and PEL Series
AEMC AmpFlex® Sensor 24" Model 193-24-BK
Part# 2140.34
$320.00
Quantity:
AmpFlex® 193-24-BK 24" for use with Models 8220, 8230, PowerPad & PEL Series
AEMC AmpFlex® Sensor 36", Model 193-36-BK
Part# 2140.35
$370.00
Quantity:
AmpFlex® 193-36-BK 36" for use with Models 8220, 8230, PowerPad & PEL Series
AEMC AC Current Probe Model MN193-BK
Part #2140.36
$329.00
Quantity:
AC Current Probe Model MN193-BK for use with Models L104, L564, PowerPad and PEL Series
AEMC Replacement –ID Markers Set of 12
Part #2140.45
$31.00
Quantity:
Replacement – Set of 12, Color-coded Input ID Markers for Model 8333, 8335, 8336, 8435, & PEL 105
AEMC Cable – Replacement 5 ft
Part #2140.46
$14.00
Quantity:
Cable – Replacement 5 ft USB cable for Models 8333, 8335, 8336 & PEL 105
AEMC MiniFlex® Sensor, Model MA193-10-BK
Part# 2140.48
$239.00
Quantity:
MiniFlex® Sensor Model MA193-10-BK for use with PowerPad and PEL Series
AEMC AC/DC Current Probe Model J93-BK
Part #2140.49
$2,495.00
Quantity:
The AC/DC Current Probe Model J93-BK is a Hall Effect Current Probe designed to measure DC currents up to 5000A and AC currents up to 3500A, without opening the circuit. This probe is for use with Models 8333, 8336, 8435 & PEL Series.
AEMC MiniFlex® Sensor Model MA193-14-BK
Part# 2140.50
$299.00
Quantity:
MiniFlex® Sensor Model MA193-14-BK for use with PowerPad and PEL Series
AEMC Lead – One 10 ft (3M) Black Lead
Part #2140.73
$36.00
Quantity:
Lead – One 10 ft (3M) Black Lead (Waterproof cap) {Rated 1000V CAT IV} & one Black Alligator Clip {Rated 1000V CAT IV, 15A, UL} for use with Models 8435 & PEL 105
AEMC AmpFlex® Sensor 24", Model 196A-24-BK
Part# 2140.75
$349.00
Quantity:
AmpFlex® 196-24-BK 24" (waterproof - IP67) for use with Model 8435
AEMC Adapter – Replacement Power Adapter 110V/230V with US Power Cord f
Part #: 5000.19
$205.00
Quantity:
Adapter –
Replacement Power Adapter 110V/230V with US Power Cord for use with Models 8333, 8335, 8336, & C.A 6116
AEMC Adapter – USB SD Card Adapter
Part #5000.45
$16.50
Quantity:
Adapter
– USB SD Card Adapter {Replacement for Power & Energy Logger Models PEL 102 & PEL 103}
