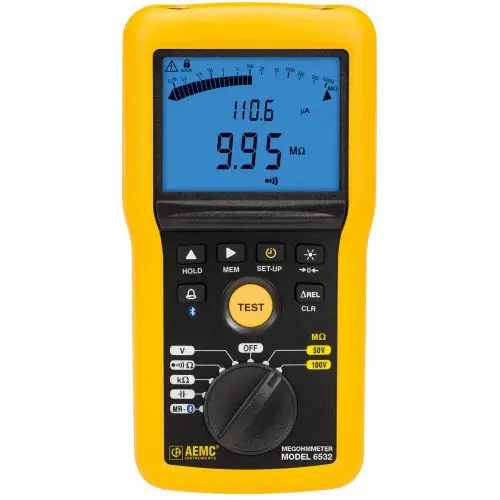

AEMC Megohmmeter Model 6532

Click image to enlarge
(Part#2155.54)
Mfg: AEMC®
Additional Model Number: 6532
Price Each: $829.00
Quantity:

The Megohmmeter Model 6532 is a handheld, battery powered, multi-function 100V digital insulation resistance tester. It is designed to measure Insulation Resistance, Continuity, Resistance, Capacitance, Frequency, Voltage and Line Length. With a safety rating of 600V CAT IV and IP 54, the Model 6526 performs insulation resistance at 50 and 100V measuring insulation values up to 20GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. The Model 6532 includes a Timer and Lock function which allows the user to operate the unit hands free. Automatic safety check protects user and meter with audiovisual signals and test inhibition when >25V is present on test sample. DAR, PI, Alarms and a Cable Length function are standard. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test. Optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. With the possibility to save up to 1300 tests in memory and Bluetooth communication with DataView software, the Model 6532 is the best tool for testing low voltage cable such as Telecom cable.
Features
  • 100V Insulation and Multi-Function Tester (Resistance, Capacitance, Continuity, Frequency, Voltage and Line Length)
  • 50V and 100V Insulation Test Voltages
  • 20GΩ Max Insulation Resistance
  • DAR and PI ratios calculated
  • Timed Test Mode up to 40 minutes for Insulation Resistance Test
  • Test Lock feature for hands free timed measurements up to 15 minutes
  • Continuity tests at 20mA or 200mA
  • Test lead resistance compensation for accurate low resistance measurements
  • True RMS AC/DC Voltmeter up to 700V
  • Ohmmeter to 1000kΩ
  • Capacitance to 10µf
  • Frequency measurements from 15 to 800Hz
  • Auto discharge after Insulation Test
  • Hold function to "freeze" readings
  • Large and bright dual display with blue backlight
  • Pass/Fail indicator with green/red backlight
  • Auto Standby Feature due to inactivity saves battery power
  • 1300 Measurement storage in memory
  • Bluetooth communication with included DataView software
