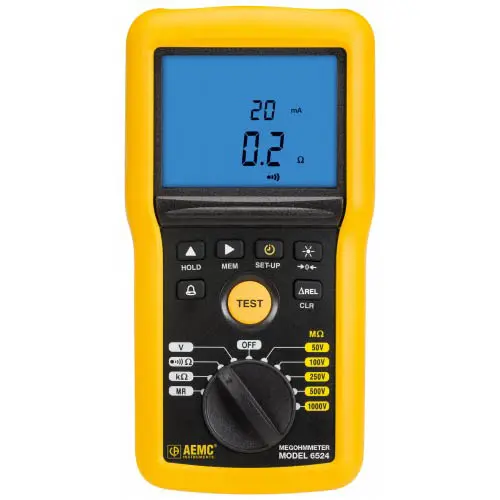

AEMC Megohmmeter Model 6524

Click image to enlarge
(Part#2155.52)
Mfg: AEMC®
Additional Model Number: 6524
Price Each: $719.00
Quantity:

The Megohmmeter Model 6524 is a handheld, battery powered, multi-function 1000V digital insulation resistance tester with onboard memory. It is designed to measure Insulation Resistance, Continuity, Resistance, Frequency and Voltage. With a safety rating of 600V CAT IV and IP 54, the Model 6524 performs insulation resistance at 50, 100, 250, 500 and 1000V measuring insulation values up to 200GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. PI, DAR and Alarms function are standard. The Model 6524 includes a Timer and Lock function which allows the user to operate the unit hands free. Automatic safety check protects user and meter with audiovisual signals and test inhibition when >25V is present on test sample. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test. Optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. With the possibility to save up to 300 tests in memory, the Model 6524 is a great tool for most of the insulation tests in the shop or in the field where a wide range of voltages, up to 1000V, are desired.
Features
  • Accessory
  • 1 kV Insulation and Multi-Function Tester (Resistance, Continuity, Frequency and Voltage)
  • 50V, 100V, 250V, 500V and 1000V Insulation Test Voltages
  • 200GΩ Max Insulation Resistance
  • DAR and PI ratios calculated
  • Timed Test Mode up to 40 minutes for Insulation Resistance Test
  • Test Lock feature for hands free timed measurements up to 15 minutes
  • Continuity tests at 20mA or 200mA
  • Test lead resistance compensation for accurate low resistance measurements
  • True RMS AC/DC Voltmeter up to 700V
  • Ohmmeter to 1000kΩ
  • Frequency measurements from 15 to 800Hz
  • Auto discharge after Insulation Test
  • Hold function to "freeze" readings
  • Large and bright dual display with blue backlight
Technical Resources
Add a quantity below and we will automatically add it to your quote or buy cart when you click on the Add to Cart or Quote button above
AEMC Case – Field Case
Part#2118.98
$190.00
Quantity:
Case – Field Case (Waterproof) for use with all Hand-held Megohmmeters
Quantity:
DISCONTINUED
Case – Hands-free Carrying Case for use with all Hand-held Megohmmeters

AEMC Continuity Pole
Part #2138.54
$71.00
Quantity:
Continuity Pole to use with Models C.A 6116/6116N/6117 and Megohmmeter series 6522-653

Quantity:
DISCONTINUED
Lead - Set of 2, 5 ft (red/black) leads, probes & clips for Models 401, 403, 405, 407, 601, 603, 605 & 607


Quantity:
Set of 2, Color-coded (Red/Black) Grip Probes
AEMC Megohmmeter Test Probe
Part #: 2155.75
$199.00
Quantity:
Megohmmeter Test Probe {for use with Models 6522-6536, 6116N, 61117, 600V CAT IV}


AEMC Megohmmeter Calibration Checker
Part #: 5000.66
$99.00
Quantity:
Megohmmeter Calibration Checker – 150kΩ/100MΩ
