AEMC Fault Mapper Pro Model CA7027

Click image to enlarge

(Part# 2127.84)

Mfg: AEMC®

Additional Model Number: CA7027

Price Each: $999.00

Quantity:

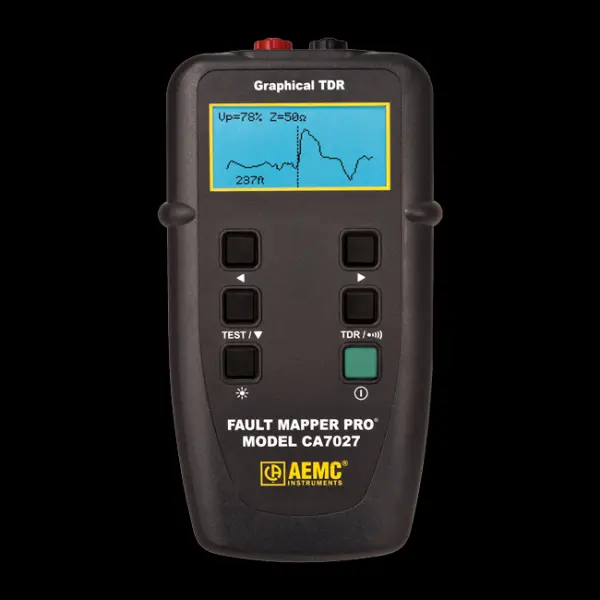

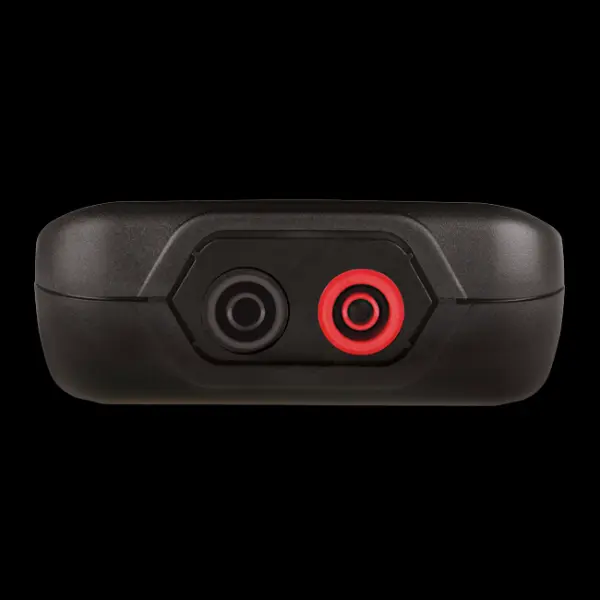

The Fault Mapper Pro® Model CA7027 is a hand-held graphical TDR Time Domain Reflectometer designed for identifying and locating faults on power and communication cables, given access to one end only.

The Fault Mapper Pro® measures cable length and indicates the length and distance to cable faults to a range of 9 to 19,000' (3 to 6000m) on virtually any type of cable. It injects a series of pulses into the cable under test. The velocity at which the pulses travel is determined by the type of cable, which is known as the velocity of propagation (Vp) of the cable. The Velocity of Propagation is adjustable between 1% and 99%, enabling accurate calibration to the cable under test.

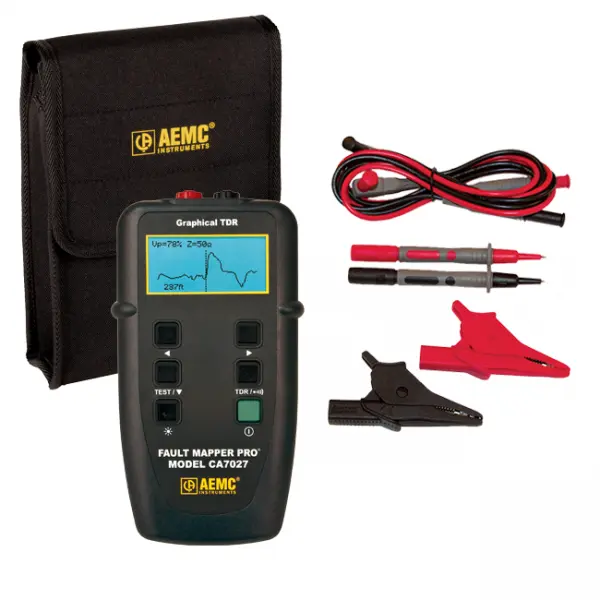

Product Includes:

Cable Tracer
Soft Carrying Case
Set of (2) color-coded 4 ft (Red/Black) Leads
Test Probes
Alligator Clips
(4) 1.5V AA Batteries
User Manual

Range (@ Vp=70%)	23, 49, 98, 197, 394, 820, 1640, 3280, 6560, 9850, 19000 ft (manual range control)
Accuracy	1% ± of Range
Resolution	Approximately 1% of selected range
Minimum Cable Length	1.5 ft (0.5m)
Velocity of Propagation (Vp)	Adjustable from 1 to 99%
Output Pulse	5V (peak to peak) into open circuit
Output Impedance	25, 50, 75, 100Ω (selectable)
Scan Rate	2 scans/second or scan held
Display Resolution	128x64 pixel graphical LCD
Backlight	Blue electroluminescent
Tone Generator	Oscillating 810 to 1110Hz
Tone Receiver/Cable Tracer	Model TR03 - Available as an accessory (not included)
Voltage Protection	250VAC
Power Source	4 x 1.5V AA alkaline batteries (included)
Auto Power Off	Selectable 1, 2, 3, 4 minutes or disabled
Dimensions	6.5 x 3.5 x 1.5" (165 x 90 x 37mm)
Weight	12 oz (350g)
Operation Temperature	14° to 122°F (-10° to 50°C)
Storage Temperature	-4° to 158°F (-20° to 70°C)
Ingress Protection (IP) Rating	IP54
EMC	EN 61326-1
Safety Compliance	IEC 61010-1, EN 60950

Features

Hand-held Graphical TDR (Time Domain Reflectometer)
Detects opens, shorts, taps, faulty taps, bridge taps, splitters, high resistance, wet cables, splices and more
Identifies impedance mismatches
Indicates cable faults and terminations up to 11,700 ft (3500m) in feet or meters
Works with twisted pair, parallel and coaxial cable
Selectable cable impedance (50Ω, 75Ω, 100Ω)
Over-voltage protection up to 250V
Adjustable cursor assists in locating faults and termination
Built-in tone generator for tracing and locating cables
Auto-Ranging scale
Large high-visibility blue electroluminescent backlit dLarge high-visibility blue electroluminescent backlit displayisplay
