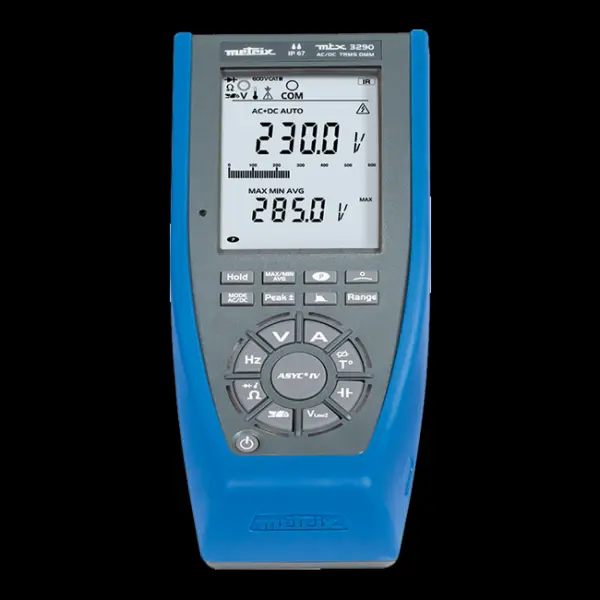

AEMC DMM Model MTX 3290

Click image to enlarge
(Part#2154.01)
Mfg: AEMC®
Additional Model Number: MTX 3290
Price Each: $399.00
Quantity:

The Model 3290 is a portable multimeter with digital display allowing direct measurement of the main electrical quantities. It's innovative design makes them compact, rugged, comfortable to grip and leakproof to IP67 standard. Easy to use design based upon the "1 key, 1 function" principle. Monitoring of Min, Max, Avg and Peaks enables you to observe many various aspects of electrical quantities.
Features
  • True RMS AC Voltage and Current measurements
  • 6000 count display
  • 1000V AC/DC/AC+DC
  • 10A AC/DC/AC+DC
  • VlowZ - low impedance voltage measurement
  • Resistance to 60MΩ
  • Capacitance to 60mF
  • Diode test capable
  • Clamp function for direct current readings
  • Frequency measurement to 600kHz
  • Temperature with optional PT100/PT1000 sensors
Technical Resources
Add a quantity below and we will automatically add it to your quote or buy cart when you click on the Add to Cart or Quote button above
AEMC AC Current Probe Model MN251
Part #2115.77
$174.00
Quantity:
The MN251 is a general purpose AC current probe with voltage output. It is designed for use with DMMs or with measuring instruments with voltage inputs. These probes permit the measurement or recording of current with instruments without current ranges. The voltage output is proportional to the current measured (through the jaws). The MN251 offers a voltage output of 1mV per Amp measured. The MN251 has integral 5 ft (1.5m) leads terminated by shrouded banana plugs.
AEMC AC Current Probe Model MN03
Part #2129.18
$89.00
Quantity:
Discontinued
Small and compact, the AC Current Probe Model MN03 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications. When used with an AC voltmeter, it allows you to directly read the current measured on the voltmeter.

Quantity:
Replacement optical USB cable for Models 6240, 6470/6470-B, 6471, 6472, 8220 & 8230

AEMC Thermocouple – K-thermocouple
Part #: 2139.71
$11.95
Quantity:
Thermocouple – K-thermocouple w/4mm Integrated Adapter {Replacement for Models 401, 403, 601, 603, & 5217}


Quantity:
DISCONTINUED
Lead - Set of 2, 5 ft (red/black) leads, probes & clips for Models 401, 403, 405, 407, 601, 603, 605 & 607
Quantity:
Replacement - MultiFix (universal mounting system) for Models 5233, 5231 & PEL 100 Series
