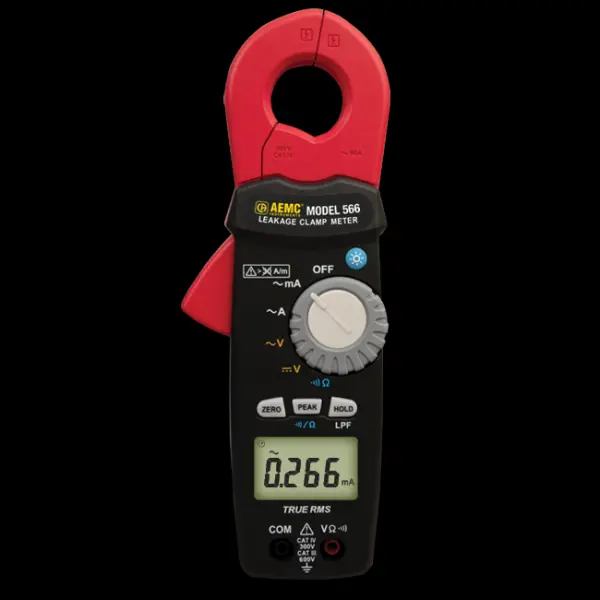

AEMC Clam-On Leakage Current Meter Model 566

Click image to enlarge

(Part# 2139.83)

Mfg: AEMC®

Price Each: $385.00

Quantity:

Maximum AC Current = 60 A
Maximum AC Voltage = 600V
Maximum DC Voltage = 600V
True RMS
Measures leakage current down to 0.001mA with up to 1µA resolution
Measures Hz on either V or A inputs
Measures resistance and continuity
Hold feature freezes value

The TRMS Clamp-On Leakage Current Meter Model 566 is designed to measure low AC currents, which are typically leakage currents in ground conductors. Low currents are measured in the 60mA and 600mA ranges. The high sensitivity of the probe (1µA, 10µA, and 100µA) resolution when measuring mA is possible through special jaw construction and, in particular, critical shielding of the jaws. At low measurement levels, shielding out noise is critical for low sensitivity, accuracy, and stability.

The Model 566 can be used as a standard clamp-on meter measuring to 60Arms, as well as VAC and VDC ranges, resistance, and continuity with a buzzer. In mAAC and AAC, the user can activate a low-pass filter (LPF) to ignore all currents other than 50/60Hz. In this mode, only the fundamental signal is measured.

The Model 566 is ergonomic in design and fits well in the hand, facilitating one hand operation. The jaw size is compact yet designed to accommodate the most common conductors up to 0.91" in diameter.

In The Box

Meter
(2) Color-Coded 5ft Test Leads (Red/Black)
Soft Carrying Case
(2) 1.5V AAA (LR03) Batteries
User Manual

Voltage Range	600Vrms AC/DC Auto-Ranging
Resolution Max	0.01V
Current Range (mA)	6 / 60 / 600mArms AC
Current Range (A)	6.0 / 60Arms AC
Resolution Max	1 µA
Accuracy V Typical	1.0% ± 3cts
Accuracy A Typical	1.0% ± 3cts
Continuity	<45Ω
Resistance	600kΩ
Frequency Range	500Hz in V, A
Power Source	2 x AAA, IEC LR03
Battery Life	40 hours at ACmA, ACA and ACV functions 60 hours at DCV and Ohm functions
Digital Display	4-digit LCD Display (6000 max)
Display Backlight	LED with backlight; 30s Auto-OFF
Dimensions	8.27" x 3" x 1.32" (210 x 76 x 33.5mm)
Weight	10.4 oz. (296g) with batteries
Jaw Opening	.91" (23mm)
Operating Temperature	+32° to 104°F (0° to +40°C)
Storage Temperatue	+14° to 140°F (-10° to +60°C)
Operating Humidity	80% up to 104°F (40°C)
Safety Compliance	EN/IEC 61010 600V CAT III
