Fluke Pressure Gauge
-15 to 15 PSIG

REFERENCE PRESSURE GAUGE BG200K

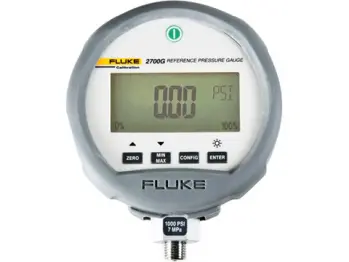

The Fluke 2700G Reference Pressure Gauge provides best-in-class measurement performance in a rugged, easy-to-use, economical package.

Improved measurement accuracy allows it to be used for a wide variety of applications.
It is ideal for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches.
In addition, it can be used as a check standard or to provide process measurements with data logging.

The 2700G has an easy-to-use interface that allows you to configure the sampling rate, tare value, damping, and auto-off time interval as well as reset the min/max pressure. You can also view the remaining battery life.

Select from 21 different standard engineering units, including bar, in H2O, kPa, MPa, and psi.
In addition, the supervisor menu can be used to set one custom engineering unit. To ensure against incorrect measurements, each of the above functions can be locked from use through the supervisor menu.

The 2700G Reference Pressure Gauge can be combined with the Fluke Calibration P5500 series of comparison test pumps to make a complete pressure calibration system.
The unique test port design of the P5500 series allows for hand tight connection of the 2700G without the use of PTFE tape.
