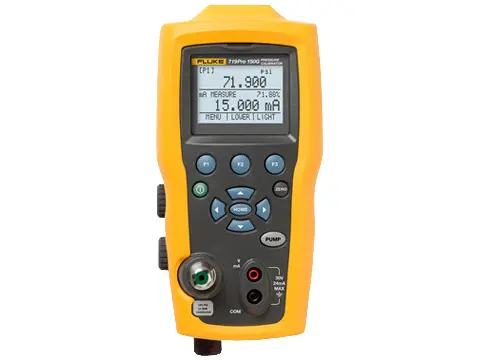

FLUKE-719PRO-300G-Electric Pressure Calibrator

Click image to enlarge

(FLUKE-719PRO-300G)

Mfg: Fluke®

Pressure Range: 300 psig

Price Each: $5,396.99

Quantity:

ELECTRIC PRESSURE CALIBRATOR, 300 PSIG

The Fluke 719 electric pressure calibrator features an innovative, built-in electric pump.
Now you can calibrate and test pressure devices quickly and easily with one hand.

Use the programmable pump limit settings to eliminate over-pressurization and to set 'pump to' pressure values.
The Fluke 719 calibrator has a unique cleanout port design that reduces pump failures and makes the Fluke 719 easy to clean without repair.

The compact, lightweight form, combined with one-handed use, makes this pressure calibrator the ideal tool for busy process professionals.
The Fluke 719 electric pressure calibrator features best in class pressure measurement accuracy of 0.025% and mA accuracy of 0.015%.

The pressure adjust vernier increases calibrator precision and the variable release rate bleed valve allows for easy pressure adjustment.
Together these features put the Fluke 719 at the ideal performance level for high accuracy transmitter calibration.

The Fluke 719 electric pressure calibrator is available in two pressure ranges; 30 PSI and 100 PSI.
The programmable pump limit feature eliminates over-pressurization and allows the user to program target pressures for pumping.
The Fluke 719 can source mA signals with simultaneous pressure measurement to test valves and I/Ps. It can also simulate mA signals to troubleshoot 4-20 mA loops.

Features

Ranges:-12 to 30 psi (-0.8 to 2 bar)-12 to 150 psi (-0.8 to 10 bar)-12 to 300 psi (-0.8 to 20 bar)
Accuracy:± 0.025 % of full scale, 6 months± 0.035 % of full scale, 1 year
One handed pressure calibration
Pump clean out ports
Fluid trap included
Operating temp: 14 to 122°F (-10 to 50°C)
Programmable pressure calibrator pump limit: Eliminates over-pressurization Allows user to program target pressures for pumping
