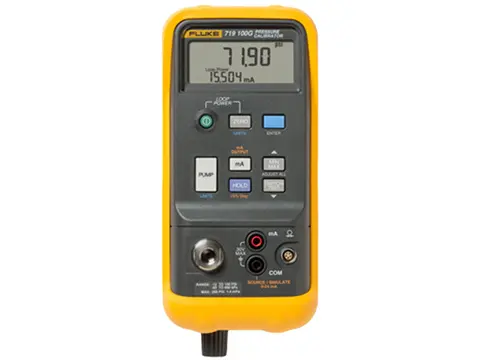

FLUKE-719 100G Electric Pressure Calibrator
Click image to enlarge
(FLUKE-719 100G)
Mfg:
Fluke®
Pressure Range:
100 PSIG
Price Each:
$4,323.99
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
ELECTRIC PRESSURE CALIBRATOR, 100 PSI, 7 BAR
The Fluke 719 electric pressure calibrator features an innovative, built-in electric pump.
Now you can calibrate and test pressure devices quickly and easily with one hand.
Use the programmable pump limit settings to eliminate over-pressurization and to set 'pump to' pressure values.
The Fluke 719 calibrator has a unique cleanout port design that reduces pump failures and makes the Fluke 719 easy to clean without repair.
The compact, lightweight form, combined with one-handed use, makes this pressure calibrator the ideal tool for busy process professionals.
The Fluke 719 electric pressure calibrator features best in class pressure measurement accuracy of 0.025% and mA accuracy of 0.015%.
The pressure adjust vernier increases calibrator precision and the variable release rate bleed valve allows for easy pressure adjustment.
Together these features put the Fluke 719 at the ideal performance level for high accuracy transmitter calibration.
The Fluke 719 electric pressure calibrator is available in two pressure ranges; 30 PSI and 100 PSI.
The programmable pump limit feature eliminates over-pressurization and allows the user to program target pressures for pumping.
The Fluke 719 can source mA signals with simultaneous pressure measurement to test valves and I/Ps. It can also simulate mA signals to troubleshoot 4-20 mA loops.
Features
Range: -12 to 120 PSI
Resolution: 0.01 PSI
Accuracy: up to 0.025%
mA:* Range: 0 to 24 mA* Accuracy: 0.015 % Rdg + 2 counts* Max load: 1000Ω; 750 Ω ohm in HART mode
Pump to:* 30 PSI in less than 15 seconds (1m of 1/8" test hose)* 100 PSI in less than 45 seconds (1m of 1/8" test hose)
5000 pump cycles between rebuilds Pump life: 20,000 calibration cycle
Safety: CSA C22.2 No. 1010.1:1992EMC: EN50082-1:1992 and EN55022:1994 Class B
Up to $3,000 in FREE gifts
Technical Resources
Datasheet: Fluke 719 Electric Pressure Calibrator
71x-calib-manual.pdf
Manual: 719 Series Pressure Calibrator with Electric Pump
