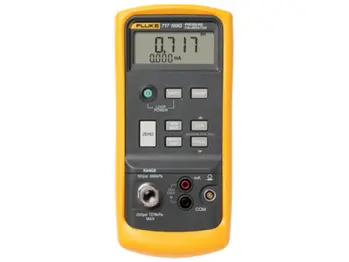

FLUKE-717 1000G-Pressure Calibrator

Click image to enlarge
(FLUKE-717 1000G)
Mfg: Fluke®
Pressure Range: 1000 PSIG
Price Each: $1,639.99
PRESSURE CALIBRATOR 1000 PSIG - Fluke 717 pressure calibrators deliver outstanding performance, durability and reliability. Fluke calibrators are compact, lightweight, easy to carry and the push button interface makes the 717s easy to use. They are EMI tolerant, dust and splash resistant and feature a removable battery door for quick battery changes. The Fluke 717 pressure calibrators can measure pressure up to 10,000 psi/700 bar when using Fluke 700 series pressure modules. The 717 calibrators are equipped with a 1/8" NPT female pressure fitting and are compatible with non-corrosive gases and liquids. The calibrators have a selection of eleven different engineering units and zero, min, max and hold functions. The Fluke 717 can calibrate P/I instruments with simultaneous pressure and current measurement. The calibrator also has a pressure switch test function which captures set, reset and Deadband values of a pressure switch. The error percent calculation of mA measurements is ideal for quick "pass-fail" decisions. Fluke 717 pressure calibrators also boast features including a long lasting battery life, a holster with test lead storage and they are compatible with Toolpack magnetic hanging system which enables hands-free operation.
  • Measure pressure, 0.05% of full scale with internal sensor up to 5000 psi
  • Compatible with Fluke 700 series differential, gauge and absolute pressure modules
  • Pressure measurement* Accuracy: 0.05% full scale * Max: up to 5000 PSI/345 bar
  • Current measurement * 0 to 24 mA* 0.015% +2 counts accuracy* 0.001 mA resolution
  • 1/8 NPT female pressure fitting
  • 11 models available
  • Up to $3,000 in FREE gifts
