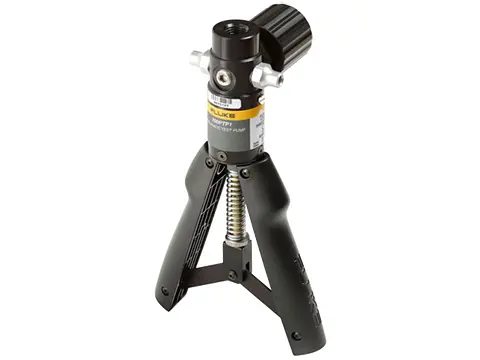

FLUKE-700PTP-1

PNEUMATIC TEST PUMP. -13 TO 600 PSI

The Fluke 700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi/40 bar.

The Fluke 700PTP-1 is designed for use with the Fluke 700 series pressure modules or test gauges and can also be used with Fluke 717 pressure calibrators. The Fluke 700PTP-1 pneumatic test pump can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing.
It is an ideal pump for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 psi/40 bar.

Features:

It can be easily cleaned without disassembly
The vernier can be used as a stand-alone low pressure calibration source
The two pressure ports allow simultaneous connection: 1/4" NPT female fitting for the reference gauge or pressure module and 1/4" NPT female fitting for the unit under test
The adjustable stroke length can be set to limit the pressure per stroke

Features

600 psi / 40 bar max pressure
(2) ¼" NPT female fittings
Adjustable stroke length
