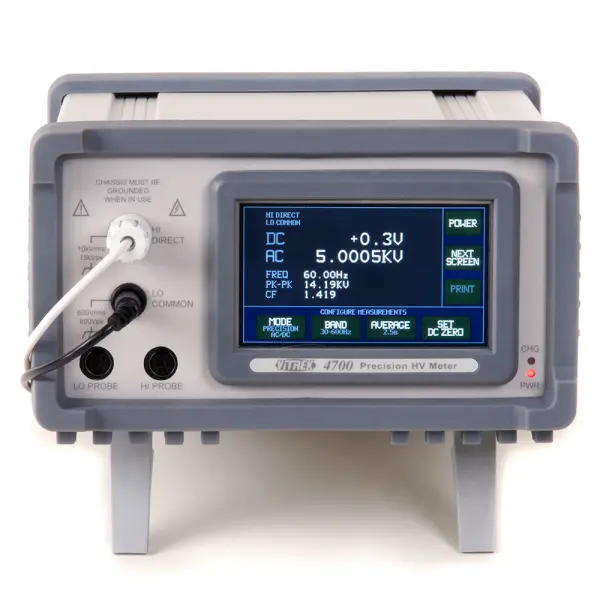

Vitrek 4700 Precision High Voltage Meter
Click image to enlarge
(4700)
Mfg:
Vitrek®
Price Each:
$4,446.00
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
Precision HV Meter with ISO 17025 Cal with Data & Uncert.; Precision High Voltage Meter. The 4700 measures directly to 10KV AC & DC. Select one or more HV Smartprobes to extend this range. Comes with: TL-47, Operating Manual, External Power Supply with Power Cord, and ISO 17025 accredited certification of calibration with data and uncertainties.
Features
Calibrates Hipot Testers, HV Power Supplies and Insulation Testers
Measures up to 10KV directly and 35, 70 , 100 or 150KV with HV Smartprobes
Basic Accuracy – 0.03% DC and 0.1% True RMS ACColor Touch Screen – Makes for Easy Measurement Selection and Display
Ethernet, Serial, USB Printer Port all standard, GPIB optional Simultaneous AC & DC Voltage Readings
Chart Mode provides Graphic documentation of HV drift, ramp time, overshoot and sagDual inputs allows Differential or Phase to Phase Voltage Measurement
High Speed DSP provides up to 60 filtered readings per second True RMS AC Measurement from 0.01Hz to 600Hz – Covering VLF to Aviation Frequencies
AC Noise Rejection 78dB – For Rock Solid, 6 Digit DC Measurements Optional Battery Pack goes up to 11 hours between charges
G Series – High Input Impedance Probes for Electrostatic applications
Technical Resources
Datasheet: Precision HV Meter with ISO 17025 Cal with Data & Uncert.
Manual: Precision HV Meter with ISO 17025 Cal with Data & Uncert.
