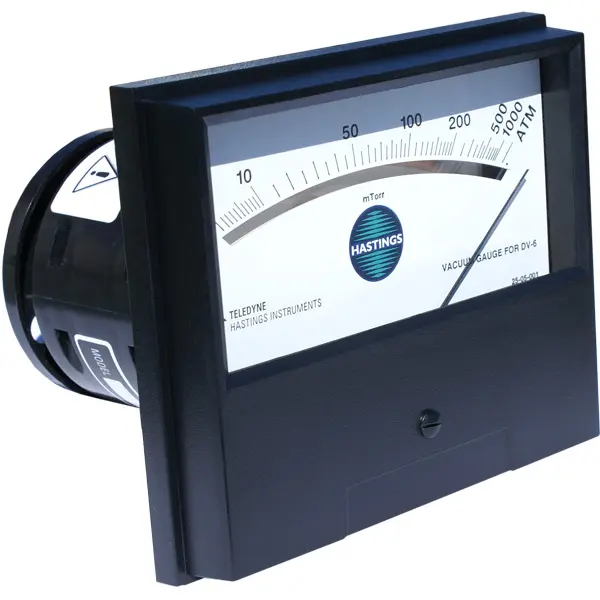

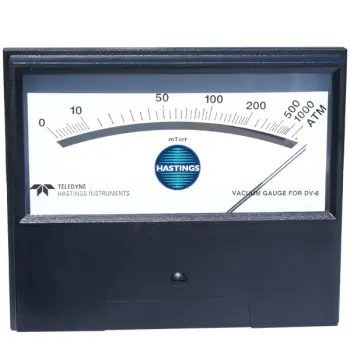

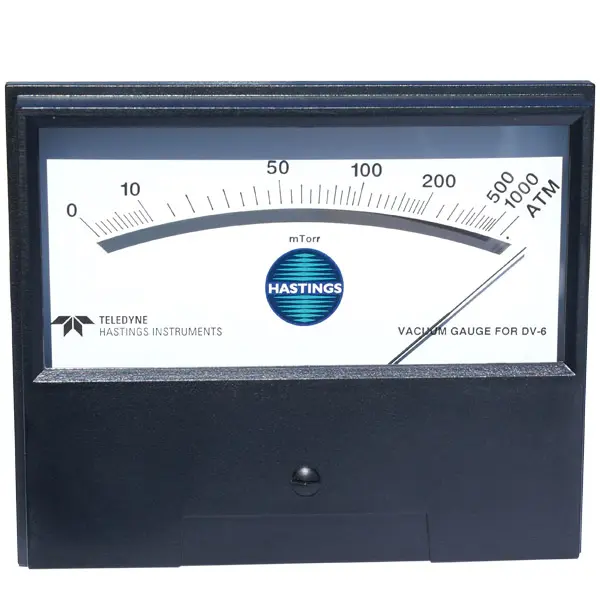

Teledyne Hasting VT-6 Series
Vacuum Gauge
0-1000mTorr Range

Click image to enlarge
(VT-6A)
Mfg: Teledyne Hastings®
Price Each: $400.00
Quantity:

VT-6A Teledyne Hastings Vacuum Gauge; 10000 mT Range, with 115 VAC;  (8' Cable Included (Gauge Tubes Sold Seperately))

VT-Series Vacuum Gauges are available in three standard ranges: 0-100 mTorr, 0-1000 mTorr, and 0-20 Torr. A self-contained gauge circuit is attached to the rear of the direct reading meter. All VT-Series Vacuum Gauges feature long life and minimal maintenance. These instruments utilize THI’s rugged but sensitive noble metal TC gauge tubes that are designed specifically for each range. Tubes are matched and interchangeable without calibration adjustments. They are compensated for temperature and rate of temperature change and are corrosion-resistant.
Features:
  • Operates Hastings Instruments most popular DV-4, DV-5, and DV-6 Gauge Tubes
  • RANGES
  1. DV-4 (0-20 Torr)
  2. DV-5 (0-100 mTorr)
  3. DV-6 (0-1000 mTorr)
  • Compatible with Calibration Reference Tubes
  • Torr Range (0-1000 mTorr)
  • 115 VAC
  • 0-1 VDC Output (non-linear)
  • Control Set-point Relays (CVT only)
  • Dial face available in Torr, mBar, or Pa
  • Corrosion Resistant
  • More options available, Call PTM for Pricing
Technical Resources

Applications:

  • Vacuum Metallurgy
  • Vacuum Furnace
  • Refrigeration (HVAC)
  • Freeze Drying
  • Lamp/Bulb Manufacturer
  • Power/Transformer Maintenance
  • Cryogenic/Vacuum Insulation
