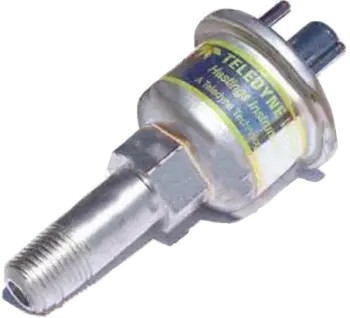

Teledyne Hastings DV-6R
Vacuum Gauge Tube
(55-38R)

Click image to enlarge
(DV-6R)
Mfg: Teledyne Hastings®
Price Each: $89.00
Quantity:

  • 1/8" NPT - Ruggedized
  • 0-1000 mTorr - Vacuum Range

Teledyne Hastings® DV-6R Vacuum Sensor | Thermocouple Gauge Tube | 1/8" NPT
Ruggedized thermocouple gauge tube has a rugged steel housing and can measure pressure between .001 to 1 Torr (1 to 1000 millitor)

The Teledyne Hastings’ DV-6 series thermocouple vacuum gauge tube acts as a localized sensor which is then paired with a selection of meters or controllers to provide reliable, cost-effective measurements in diverse applications. The robust sensor gauge tube is easily installed into vacuum systems and when properly excited, generates a thermoelectric voltage to provide a vacuum pressure measurement based on gas density. The DV-6 thermocouple vacuum gauge tube fully compensates for temperature and rate of temperature change.

Thermocouple gauge tubes are calibrated on vacuum systems that contain N2 or Air, but can be used with other gases. Additionally, thermocouple gauges and their controllers can be recalibrated when a replacement thermocouple gauge tube is installed, following instructions in the manual.


Features:
  • Corrosion-Resistant
  • Non-Contaminating
  • Stable Calibration
  • Measures in MilliTorr
  • Absolute Vacuum Reference
  • Millivolt Output
  • Rugged Construction
  • Color-Coded For Easy Identification
  • Calibrated for Nitrogen or Air (conversion factors for other gases are available)
  • Matched and Interchangeable without calibration adjustments
  • For usee with Digital and Analog VT-6 Thermocouple Gauge Controllers
  • Vacuum Interface: 1/8" Male NPT Vacuum Fitting
Applications:
  • Refrigeration
  • Vacuum Furnaces
  • Freeze Drying
  • Air Conditioning
  • Pharmaceutical Production
  • Cryogenics
  • Accelerators
  • Manufacture of Thermal Food Containers
 Color Band  Yellow
 Dimensions  See Data Sheet
 1/8" NPT Threaded Fitting  Yes
 1/4" VCR Male Fitting  Yes
 KF-16 Fitting  Yes
 KF-25 Fitting   Yes
 Mini-CF Fitting  Yes
 Max Operating Temperature  150°C
 Max Positive Pressure  400 PSIG
 Vacuum Range  0-1000 mTorr
 Hermetically Sealed Base with Glass  Yes
 Stainless Steel w/ Nickel Plated Components  Yes
 Connection  1/8" NPT - Ruggedized
 Shipping Weight  1.00 LBS
 Stock Number   55-38R
