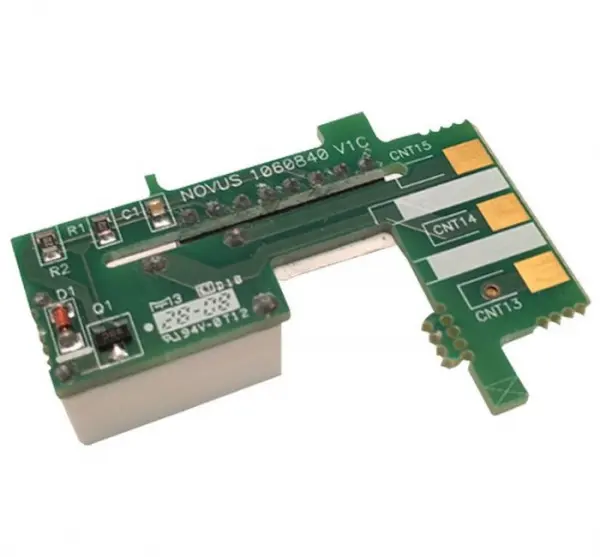

Novus PCB 3rd relay output for N1100 / N1200 / N480i

Click image to enlarge
Mfg: Novus®
RS 485: N
Price Each: $24.00
PCB I/O digital output for N1100
  • Accepts: type J, K, T, E, N, R, S and B thermocouples; Pt100, 4-20 mA, 0-50 mV and 0-10 Vdc Programmable scaling from -1999 to +9999 and adjustable digital filter
  • Accepts and linearizes non-linear 4-20 mA signals from thermocouple transmitters Accepts front panel input of custom created non-linear curve with up to 20 segments
  • Selectable decimal point for Pt100 , 4-20 mA and 0-50 mV Key panel protection through password to avoid tampering
  • Alarms: Two 3 A SPST relay alarms in the basic version and two extra relays optional Alarm functions: HI, LO, differential HI, diff. LO and sensor break detection
  • Hold capability and peak and valley detection Tare function via front panel or via digital input
  • Five digit 13 mm ultra bright LED display Standard 24 Vdc output for field transmitters
  • Universal switching power supply Circuitry can be removed from housing without disconnecting wires
  • Front panel: IP65, Polycarbonate UL94 V-2Back panel: IP30, ABS + PC UL94 V-0
