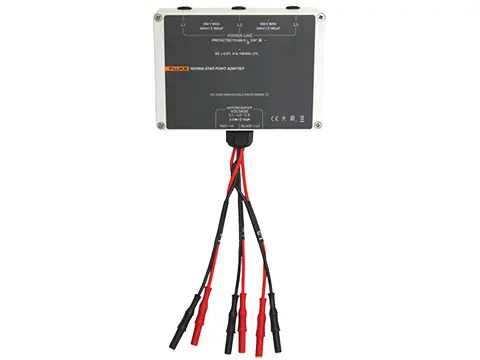

Fluke NORMA STAR POINT

Click image to enlarge
(NORMA STAR POINT)
Mfg: Fluke®
Price Each: $1,378.99
Quantity:

EXTERNAL STAR POINT ADAPTER - The Fluke Norma External Star Point Adapter generates a virtual star point in 3-phase delta systems without neutral for measuring purposes. For Fluke Norma 4000/5000 power analyzers.
Features
  • Max. 500 V Phase to Phase
  • High frequency range 100 kHz
  • Compensated phase angle
  • Basic uncertainty ± 0,2%
  • Insulation 600V CAT III
  • Safety input plugs
  • Insulated safety output connectors
Add a quantity below and we will automatically add it to your quote or buy cart when you click on the Add to Cart or Quote button above
Fluke-2 Phase Percision Power Analyzer
Fluke-N4K 2PP42I
$14,321.99
Quantity:
2 PH N4K POWER ANALYZER W/42/IFC2 The Fluke Norma 4000/5000 series are high precision power analyzers that provide reliable, highly accurate measurements for the test & development of power electronics. They include the latest power measurement technology to assist engineers working with motors, inverters, lighting, power supplies, transformers and automotive components in making their products more efficient. Based on a patented high-bandwidth architecture, Fluke Norma Series power analyzers deliver precise measurements of single or three phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values. They provide class-leading accuracy and common mode rejection for any waveform, frequency, or phase shift. Ideal for field testing, the Fluke Norma 4000 power analyzer offers easy and straight-forward operation. Features include 1 to 3 power phases, harmonic analysis, FFT analysis, scope mode, vector diagram display, recorder function, and 4 MB RAM data memory. The Fluke Norma 5000 provides the highest bandwidth on the market and is the ideal test and analysis tool for the development of frequency converters and lighting equipment. Features include: 1 to 6 power phases, optional internal printer, and all of the features and functionality of the Fluke Norma 4000 power analyzer described above. Fluke Norma 4000 and Fluke Norma 5000 power analyzers accurately measure current and voltage and calculate active, reactive and apparent power and calculate other derived values from these high-precision measurements. Accuracy is not affected by either the waveform shape or frequency over a wide range. Phase shift accuracy is maintained due to the input channel design. Harmonics are calculated up to half of the sampling rate. The DSO function represents measured input parameters as waveforms. Voltage and current can be measured directly via the instrument's integrated voltage dividers and shunts. It is also possible to connect external voltage dividers as well as shunts or current probes for specific applications. Options such as additional interfaces, analogue inputs and outputs are also available. The analyzer firmware can be updated via the standard RS232 interface. Fluke Norma 4000/5000 series power analyzers are very easy to use. With their simple keypad layout and large display, it is possible to select the desired screen and quickly see the important data. With the arrow keys, users can change phases or move the cursor to highlight individual fields, which can be accessed using the ENTER key. Settings can be changed to suit the application at hand. Configurations most used can be saved for later use. The input modules can handle up to 10 A or 20 A directly or measure current via wideband precision shunts. The available range of shunts enables measurements up to 1500 A and can be used in conjunction with all of the available input modules. The Fluke NormaView software improves operation efficiency of the analyzers by enabling instrument setup settings to be saved and stored along with the measurement data. Instrument setups can be used for particular measurement tasks. Settings can be easily uploaded to the instrument with just a few mouse clicks. The software also enables quick and easy data download, analysis and report writing. The optional process interface can be used with both Fluke Norma 4000 and Fluke Norma 5000 power analyzers. It provides the simultaneous recording of torque (M), speed (N) and mechanical power (Pm) of up to four motors. Each of the eight inputs is switchable between analog (voltage) or digital (frequency) input. This interface provides synchronous capture at a sample rate of 34 kHz. The interface also provides four analog outputs, which are updated after every average interval. By inputting the additional analog and digital values it is possible to fully evaluate electrical and mechanical efficiency in real time.
Fluke-3 Phase Power Analyzer
Fluke-N4K 3PP42
$14,429.99
Quantity:

The Fluke N4K3PP42 Norma 4000 Three-Phase Precision Power Analyzer with PP42 Power Phase Input Modules (x3) offers easy and straight-forward operation, which is ideal for field testing.

N4K 3PP42 accurately measures current and voltage and calculates active, reactive and apparent power; it calculates other derived values from these high-precision measurements.

Accuracy is not affected by either the waveform shape or frequency over a wide range. Phase shift accuracy is maintained due to the input channel design. Harmonics are calculated up to half of the sampling rate.

The DSO function represents measured input parameters as waveforms. Voltage and current can be measured directly via the instrument's integrated voltage dividers and shunts. It is also possible to connect external voltage dividers as well as shunts or current probes for specific applications. Options such as additional interfaces, analogue inputs and outputs are also available. The analyzer firmware can be updated via the standard RS232 interface

N4K 3PP42 is designed to measure signals in a wide frequency range, from DC to MHz. The input stages are DC coupled and designed to handle high rise time signals. A zero and offset calibration against a stable voltage reference runs automatically over short time periods to stabilize accuracy.

All voltage and current channels are separated by a unique technology of barriers for high channel isolation and common mode rejection. This makes this power analyzers suitable for special applications, such as switching waveforms present on variable frequency drives or high efficiency lighting loads.




Fluke-3 Phase Power Analyzer
Fluke-N4K 3PP42IPB
$23,899.99
Quantity:

The Fluke N4K3PP42IPB Norma 4000 Three-Phase Precision Power Analyzer with PP42 Power Phase Input Modules (x3), Current Binding Post, IEEE488/ Ethernet Interface and Analog/Digital Input/Output Channels offers easy and straight-forward operation, which is ideal for field testing.

N4K 3PP42IPB accurately measures current and voltage and calculates active, reactive and apparent power; it calculates other derived values from these high-precision measurements.

Accuracy is not affected by either the waveform shape or frequency over a wide range. Phase shift accuracy is maintained due to the input channel design. Harmonics are calculated up to half of the sampling rate.

The DSO function represents measured input parameters as waveforms. Voltage and current can be measured directly via the instrument's integrated voltage dividers and shunts. It is also possible to connect external voltage dividers as well as shunts or current probes for specific applications. Options such as additional interfaces, analogue inputs and outputs are also available. The analyzer firmware can be updated via the standard RS232 interface.

N4K 3PP42IPB is designed to measure signals in a wide frequency range, from DC to MHz. The input stages are DC coupled and designed to handle high rise time signals. A zero and offset calibration against a stable voltage reference runs automatically over short time periods to stabilize accuracy.

All voltage and current channels are separated by a unique technology of barriers for high channel isolation and common mode rejection. This makes this power analyzers suitable for special applications, such as switching waveforms present on variable frequency drives or hig

The exceptionally high processing power enables precise measurements without gapping, ensuring good results even with rapidly changing signals.

N4K 3PP42IPB maintains high performance and reliable accuracy within the industry's longest recommended recalibration interval of two years. This long interval reduces downtime and saves service costs.


Fluke-3 Phase Power Analyzer
Fluke-N5K 3PP64I
$27,999.99
Quantity:
Fluke-Norma 5000, three phase with 3xPP64 power phase input modules with IEEE488 / Ethernet interface


Fluke-3 Phase Power Analyzer
Fluke-N5K 3PP64IP
$30,799.99
Quantity:
3 PH N5K POWER ANALYZER W/64/IFC2 & PI1 The Fluke Norma 4000/5000 series are high precision power analyzers that provide reliable, highly accurate measurements for the test & development of power electronics. They include the latest power measurement technology to assist engineers working with motors, inverters, lighting, power supplies, transformers and automotive components in making their products more efficient. Based on a patented high-bandwidth architecture, Fluke Norma Series power analyzers deliver precise measurements of single or three phase current and voltage, harmonics analysis, Fast Fourier Transformation (FFT) analysis, as well as calculations of power and other derived values. They provide class-leading accuracy and common mode rejection for any waveform, frequency, or phase shift. Ideal for field testing, the Fluke Norma 4000 power analyzer offers easy and straight-forward operation. Features include 1 to 3 power phases, harmonic analysis, FFT analysis, scope mode, vector diagram display, recorder function, and 4 MB RAM data memory. The Fluke Norma 5000 provides the highest bandwidth on the market and is the ideal test and analysis tool for the development of frequency converters and lighting equipment. Features include: 1 to 6 power phases, optional internal printer, and all of the features and functionality of the Fluke Norma 4000 power analyzer described above. Fluke Norma 4000 and Fluke Norma 5000 power analyzers accurately measure current and voltage and calculate active, reactive and apparent power and calculate other derived values from these high-precision measurements. Accuracy is not affected by either the waveform shape or frequency over a wide range. Phase shift accuracy is maintained due to the input channel design. Harmonics are calculated up to half of the sampling rate. The DSO function represents measured input parameters as waveforms. Voltage and current can be measured directly via the instrument's integrated voltage dividers and shunts. It is also possible to connect external voltage dividers as well as shunts or current probes for specific applications. Options such as additional interfaces, analogue inputs and outputs are also available. The analyzer firmware can be updated via the standard RS232 interface. Fluke Norma 4000/5000 series power analyzers are very easy to use. With their simple keypad layout and large display, it is possible to select the desired screen and quickly see the important data. With the arrow keys, users can change phases or move the cursor to highlight individual fields, which can be accessed using the ENTER key. Settings can be changed to suit the application at hand. Configurations most used can be saved for later use. The input modules can handle up to 10 A or 20 A directly or measure current via wideband precision shunts. The available range of shunts enables measurements up to 1500 A and can be used in conjunction with all of the available input modules. The Fluke NormaView software improves operation efficiency of the analyzers by enabling instrument setup settings to be saved and stored along with the measurement data. Instrument setups can be used for particular measurement tasks. Settings can be easily uploaded to the instrument with just a few mouse clicks. The software also enables quick and easy data download, analysis and report writing. The optional process interface can be used with both Fluke Norma 4000 and Fluke Norma 5000 power analyzers. It provides the simultaneous recording of torque (M), speed (N) and mechanical power (Pm) of up to four motors. Each of the eight inputs is switchable between analog (voltage) or digital (frequency) input. This interface provides synchronous capture at a sample rate of 34 kHz. The interface also provides four analog outputs, which are updated after every average interval. By inputting the additional analog and digital values it is possible to fully evaluate electrical and mechanical efficiency in real time.
