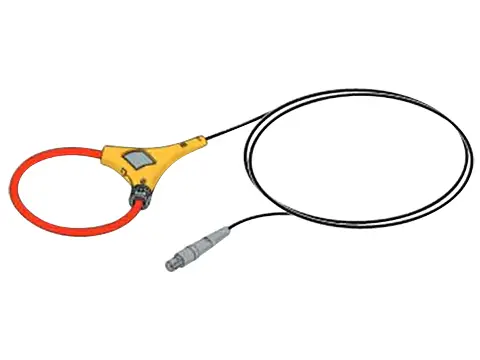

Fluke Flexi CT - 1000 A (for use with 1750)
Click image to enlarge
(3210-PR-TF-II)
Mfg:
Fluke®
Price Each:
$1,685.99
Quantity:
Add to Quote
Add to Cart
Description
Features
The Fluke 3210-PR-TF-II 24 in. Thin Flexible AC Current Clamp for Model 1750, 1000A AC utilizes the Rogowski principle. The 3210PRTFII is designed to measures current from very low frequencies up to the 50th harmonic of a 50/60 Hz power supply. The flexible and lightweight measuring head allows for quick and easy installation in hard to reach areas and around large conductors. It includes a 24 inch long connection cable.
Features
Mesurments up to 40A
Flexible and lightweight measuring head allows for quick and easy installation in hard-to-reach areas and around large conductors
Measurement range: 20 to 1000A (crest factor ≤3)
Frequency range: 40 Hz to 5 kHz
Accuracy (@25 °C) ±1 % of reading
Linearity (10 % to 100 % of range): +/-0.2 % of reading per C
Temperature Coefficient: +/-0.05 % of reading per C
External Field (with cable _200 mm from head): +/-1 % of reading
For use with Model 1750
