Amprobe Light check adapter kit

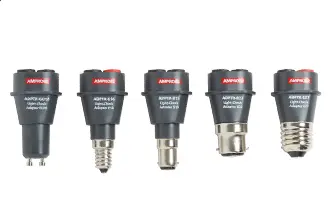

The Amprobe ADPTRKIT1 Socket Check Adapter Kit, Includes B15, B22, E14, E27, and GU10 Adapters can be used in conjunction with a wide variety of test equipment that uses test leads terminating in 4 mm safety connectors. This model includes a variety of adapters to meet a variety of socket types. The ADPTR-KIT1 offers low contact resistance, important for line resistance, loop impedance, and earth bond measurements.

Features

Includes B15, B22, E14, E27, and GU10 Adapters
Voltage range 0 to 300 VAC
Nominal current: Up to 2A continuous / cover peaks while loop /line measurement
Frequency Range: 50Hz to 60 Hz
Output 4 mm safety socket
Rated CAT II 300 V
Low contact resistance
