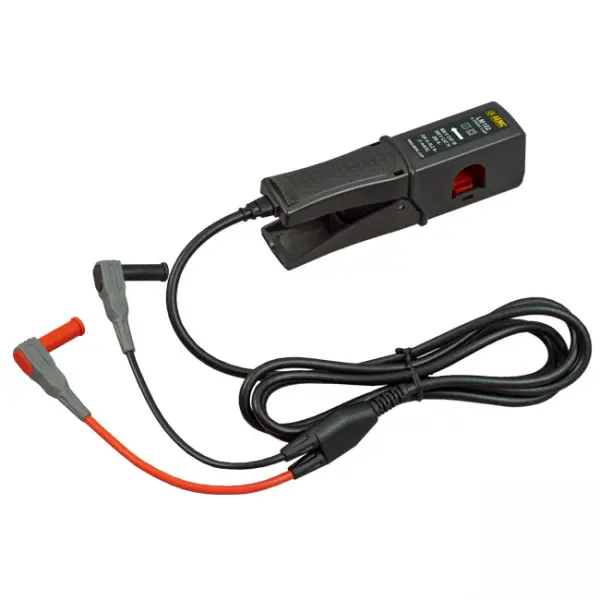

AEMC AC Current Probe Model LM102
Click image to enlarge
(AEMC Part# 2153.04 (MODEL LM102))
Mfg:
AEMC®
Price Each:
$305.00
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
The LM102 is a general-purpose AC current probe designed for Power analyzer, DMM and other measuring instruments with current input. It has a 1000:1 ratio and an output of 1mA per Amp. The LM102 has integral 5 ft (1.5m) leads terminated by safety 4mm banana plugs. The LM102 has protective diodes across the output that limit the voltage in open secondary situations
Features
1ma/A output
Clamping diameter 0.63" (16mm)
Measurement range from 0.1 to 200 Amps
Over range up to 350 Amps continuous
Clothes pin design allows access to tight places
Frequency response from 48 to 10kHz
Arrow marker clearly assist in proper orientation for power measurement applications
Technical Resources
LM102_EN.pdf
Datasheet
