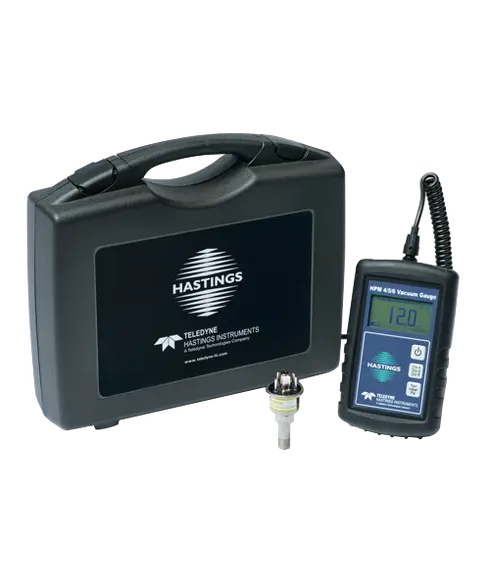

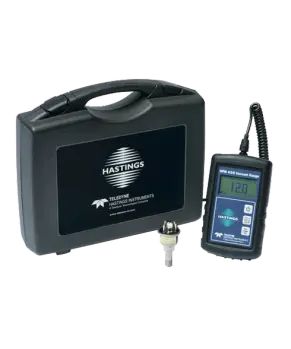

Teledyne Hastings HPM 4/5/6
Battery Operated Portable Vacuum Gauge

Click image to enlarge
Quantity 1-9 10+
Price for each $715.00 $679.25
Your savings - 5%
(HPM 4/5/6)
Mfg: Teledyne Hastings®
Price Each: From $679.25
Quantity:

(Gage Tubes sold seperately)

Teledyne HPM 4/5/6 Battery Operated Portable, Digital Vacuum Gauge (Torr, mbar, & Pascal; 3 Ranges: DV-4 (0-20 Torr), DV-5 (0-100 mTorr), & DV-6 (0-1000 mTorr)

The Teledyne Hastings Instruments' HPM 4/5/6 is a hand-held, battery-operated digital vacuum gauge based on the highly successful VT/CVT-Series of "Hastings Gauges" which have generated loyal customers for over 50 years. A reputation has been built on exceptional stability, accuracy, and reliability under the most demanding conditions.

The HPM 4/5/6 features a precision A/D converter along with a microprocessor to measure the thermocouple vacuum gauge tube's signal output. The microprocessor converts the measurement to a pressure reading by employing the gauge tube's welldefined output/pressure relationship. The result is displayed using a bright, easy-toread graphical display

The HPM 4/5/6 is compatible with three of THI's most popular gauge tube families: DV-4, DV-5 and DV-6. These tubes utilize THI's rugged but sensitive noble metal thermocouples that are designed specifically for each range. Tubes are matched and interchangeable without calibration adjustments. They are compensated for temperature and rate of temperature change and are corrosion resistant.

Package Contents:
  • HPM 4/5/6 Vacuum Gauge
  • Rugged Carrying Case
  • Silicon Cover
  • Cable

Features:

  • Easy to Read Graphical Display
  • Torr, mBar, and Pascal Units
  • Battery Status Indicator
  • Protective Covering
  • Rugged Carrying Case
  • Detachable Cable
  • Compatible with Calibration Reference Tubes
General Specifications:

Range:

DV-4 Series: 0.1-20 Torr
DV-5 Series: 0.1-100 mTorr
DV-6 Series: 1-1000 mTorr

Accuracy
(when calibrated with the gauge tube):
DV-4 Series ±20% of reading for + 0.02 Torr
DV-5 Series ±20% of reading for + 0.1 mTorr
DV-6 Series ±15% of reading for + 1 mTorr
Cable: Detachable and Replaceable
Battery: 9 VDC Alkaline
Approximate Battery Life: >30 hours (with included alkaline battery)
Operating Temperature: -18°C to 55°C with supplied alkaline battery
-20°C to 60°C with alternate lithium battery
Rugged: MIL-STD-810G
Method 514.6
Temperature Coefficient: DV-4 (1.25% of reading + 2.2 mTorr) /°C
DV-5 (0.1% of reading + 0.08 mTorr) /°C
DV-6 (-0.25% of reading + 0.2 mTorr) /°C

Applications:

  • Cryogenics/Vacuum Insulation
  • Refrigeration / HVAC
  • Power/Transformer Fill & Maintenance
  • Particle Accelerators
