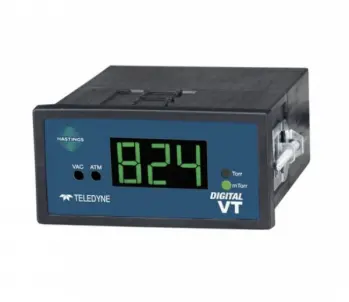

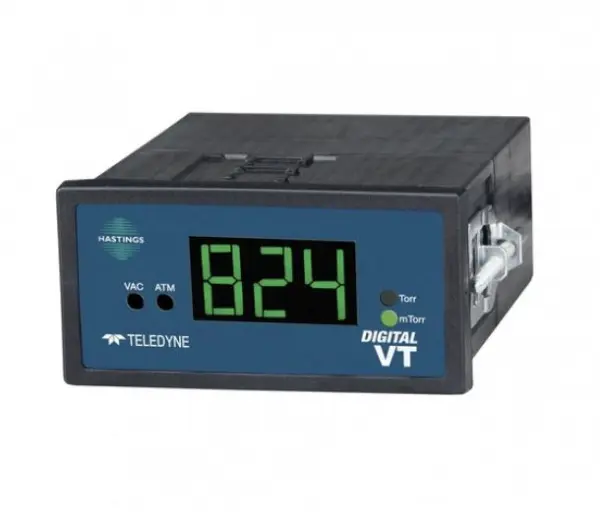

Teledyne Hastings DVT-4
Vacuum Gauge
20 Torr

Click image to enlarge
(DVT-4)
Mfg: Teledyne Hastings®
Price Each: $400.00
Quantity:


Teledyne DVT-4 20 Torr Digital Vacuum Gauge, AC/DC Universal Supply & 8' Cable Included;

Digital Readout for DV-4 Series Gauge Tubes (0.1 - 20 Torr Gauge Tubes Sold Seperately)

The Hastings Instrument’s Digital VT, is a digital readout version of the successful VT-Series “Hastings Gauge” which has generated loyal customers for over 50 years. A reputation has been built on exceptional stability, accuracy, and reliability under the most demanding conditions.

A precision A/D converter, with a microprocessor is used to measure the gauge tube’s signal output; it converts the measurement to a pressure reading using the gauge tube’s well defined output/pressure function, and then display the result.

The Digital VT Vacuum Gauge Meter is available for two Hastings Instruments most popular gauge tube families: The DV-6 and DV-4. The DV-6 range is 0-1000 mTorr. The DV-4 range is 0-20 Torr. All VTSeries Vacuum Gauges feature long life and minimal maintenance.

These instruments utilize Hastings rugged noble metal TC gauge tubes that are designed specifically for each range.

Tubes are matched and interchangeable without calibration adjustments. They are compensated for temperature, rate of temperature change and are corrosion resistant.

Package Contents:

  • DCVT Electronics Module
  • 8 Foot Gauge Tube Cable
  • AC Cordset
  • AC Plug Adapter
  • Panel Mount Hardware

Features:

  • Controls Vacuum
  • Fully Compensated for both Temperature and Rate of Temperature Change
  • Bright, Easy-to-Read Digital Display
  • Available in Torr, mBar, or Pascal
  • Compatible with Calibration Reference Tubes
  • Renowned worldwide for their dependability
  • Proven Reliability / Less Downtime
  • Easy Installation and Operation
  • Low Cost
  • If you do not see what you are looking for, contact PTM directly for additional information.

Applications:

  • Refrigeration/HVAC
  • Power/Transformer Fill & Maintenance
  • Cryogenics/Vacuum Insulation
  • Vacuum Coating
  • Vacuum Furnaces
  • Freeze Drying
  • Accelerators
